MAE ADSF 10 RH
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Metzingen | Baden-Württemberg |
| Category: | Hydraulic Presses |
| Manufacturer: | Mae |
| Model: | ADSF 10 RH |
| Year of Make: | 1984 |

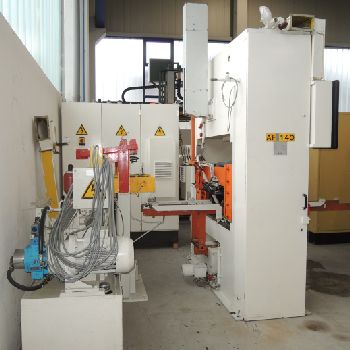

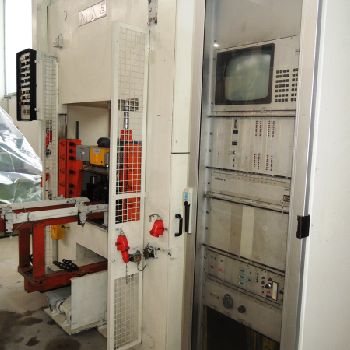

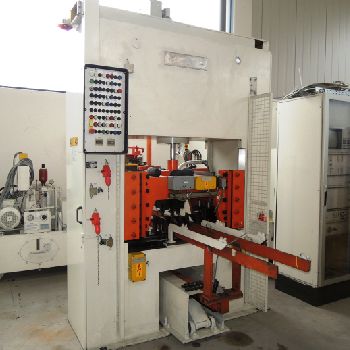

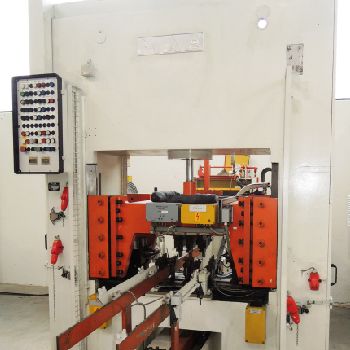

| Description: | We can offer you non-binding from stock, error and prior sale reserved: M A E Automatic Double Column Straightening Press with Microprocessor ControlType ADSF 10 RHYear 1984 SerialNo. 5 002 84 00 Straightening force Pressure capacity of the upper piston 10 toRelaxing force 7.5 to tappet stroke 200 mmMoving speed 100 mm / s Center height above table 160 mmA clamping length of the workpiece, approx. 600/700 mmInstallation height max. 600 mmPump drive 5.5 kWTotal drive approx. 10 kW 380 V 50 HzWeight approx. 4,500 kgHeight of the machine approx. 3,300 mmAccessories / special equipment: · FEIN TESTMeasure and sequence control MILLITRON P2070 with screen for the fully automatic straightening process: workpiece loading, measurement of the "impact", positioning of the Workpiece with "maximum maximum load", straightening process, control measurement (and, if necessary, rereading) eject workpiece · machine equipped with a short workpiece feed by means of lifting bars, the workpiece is centered |
Hans-Jürgen Geiger Maschinen-Vertrieb GmbH James-Watt-Straße 12D-72555 MetzingenGermany SHOW |
