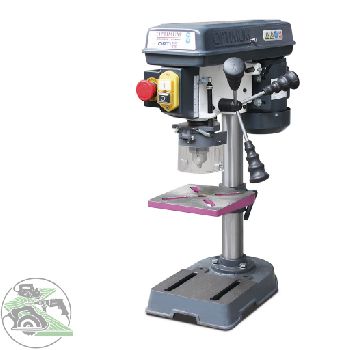

Optimum OptiDrill Type B 13
$ 142
| Type: | Buy-It-Now |
| Location: | Germany | Gerolzhofen |
| Category: | Misc |
| Manufacturer: | OPTIMUM |
| Description: | Precisely machined drill table | Tiltable by 45 ° | Guaranteed concentricity better | measured as 003 mm in the drill quill | Drilling depth stop | Cover with safety switch | Separate emergency stop blow switch | T-Slot nuts for vise mounting | Technical Data | Dimensions and weights | Length approx. 420 mm | Width / Depth approx. 220 mm | Height approx. 580 mm | Weight approx. 19 kg | Drilling capacity | Drilling capacity steel (S235JR) 13 mm | Continuous drilling capacity Steel (S235JR) 12 mm | drilling table | work surface length 160 mm | working surface width 160 mm | TNuten size 14 mm | distance spindle Drilling table max. 240 mm | Speed range | Speed range 520 2620 min¯¹ | Number of speed ranges 5 | Electrical data | Supply voltage 230 V | Phase (s) 1 Ph | Current type AC | Mains frequency 50 Hz | Machine foot | Distance spindle Machine foot max. Working surface length 135 mm | working surface width 175 mm | motor (s) | drive power spindle motor 0.3 kW | spindle | quill stroke 50 |
Kirchner GmbH Nikolaus-Fey-Strasse 17D-97447 GerolzhofenGermany SHOW | |
