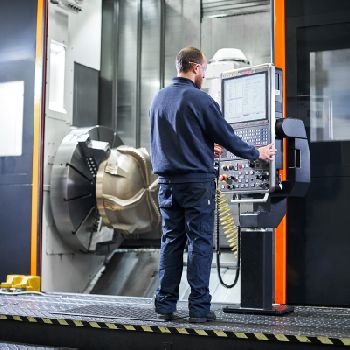

MAZAK INTEGREX E-800H II x 6000





REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Wiesbaden |
| Category: | Turn-Mill Centers |
| Year of Make: | 2014 |
| Description: | Reference No .: 19081 | Mazatrol Matrix II control | max. Turning diameter 1,300 mm | max. Spindle length 6,000 mm | Travels | X / Y / Z / W 1,300 / 800 / 6,380 / 5,010 | Spindle motor 30 kW | C axis, 0.0001 ° | Main spindle AC 30 kW | Max. Spindle speed 700 rpm | milling spindle AC 37 kW | max. Speed of milling spindle 10,000 rpm | B-axis, 0.0001 ° | ATC 80 Tools | Capto C8 | NC tailstock | Chip conveyor, Mayfran ConSep | 70 bar high pressure pump | Manual bezel | 1.700 mm borring bar stocker, separate magazine for long boring bars | 5 -Axis control package | Mill-spindle synchronous tapping | Cylindrical and polar coordinate | Re-threading | Preparation for flash tool, multi-holder preparation | Scale feedback X-axis, glass scale | Scale feedback Y-axis, glass dimension | 3-jaw chuck, SMW IN -C1250 | SIN-S250 Cylinder | Renishaw RMP600 System | CE Mark |
