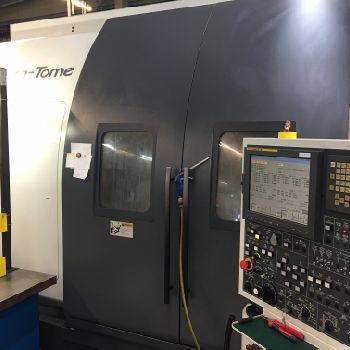

NAKAMURA SUPER NTX-S
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Wiesbaden |
| Category: | Turn-Mill Centers |
| Year of Make: | 2007 |

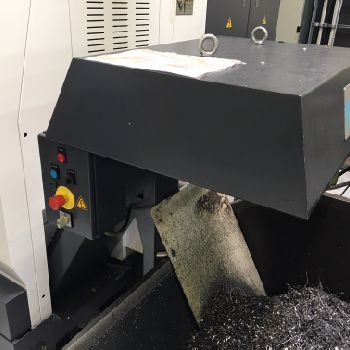

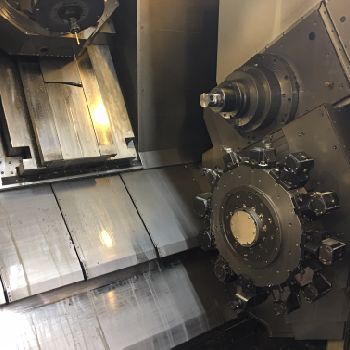

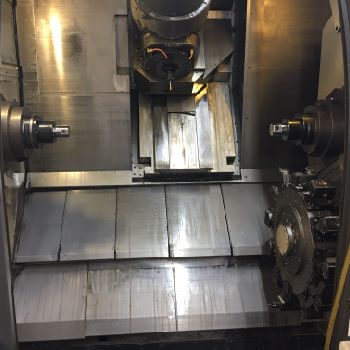

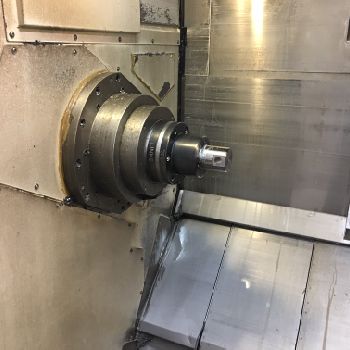

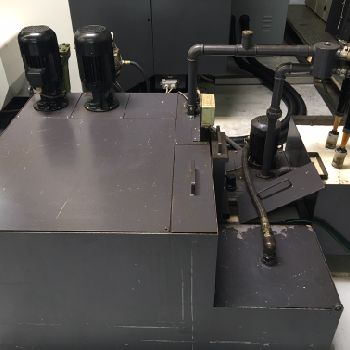

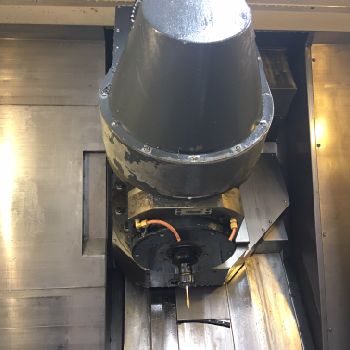

| Description: | Reference No .: 18038 | S / No. V300901 | Fanuc 16i-TB | Luckbei-Dialog System Supercap | Max. Turning diameter | - Upper revolver 370 mm | - Lower revolver 300 mm | Max. Turning length 1,100 mm | Max. Barrel passage 65 mm | Milling spindle AC 18.5 / 11 kW | Milling spindle Max. Spindle speed 12.000 rpm | Capto C6 | Servo controlled B-axis, 230 ° | Y-axis 160 mm | Tool magazine with 40 tool places | Main and counterspindle AC 22/18 , 5 kW | Main and counterspindle max. Speed 4,500 rpm | 12/24-speed tool turret, all stations driven | Max. Speed driven tools 3,600 rpm | 2 pcs. 3-jaw chuck 210 mm, Schunk | Mobile coolant tank 250 liters with coolant level monitoring | Sliding belt chip conveyor NTX, ejection to the right | 1 set of tool holders for lower turret | - 5 drill holders, 4 swivel holders, 3 driven tool holders | Weight 19.000 kg | CE mark |
