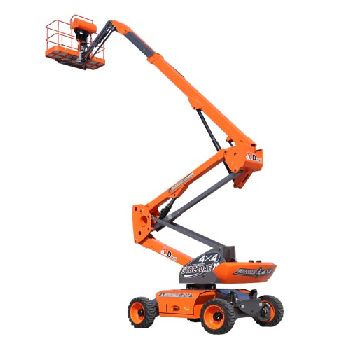

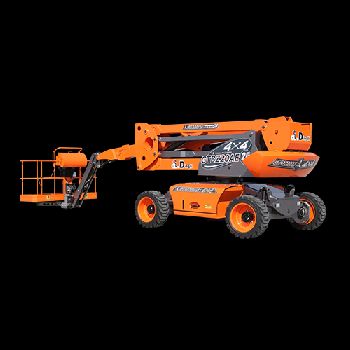

2019 Dingli GTBZ20AE
$ 83,000
| Type: | Buy-It-Now |
| Category: | Articulating Boom Lifts |
| Manufacturer: | Dingli |
| Model: | GTBZ20AE |
| Year of Make: | 2019 |

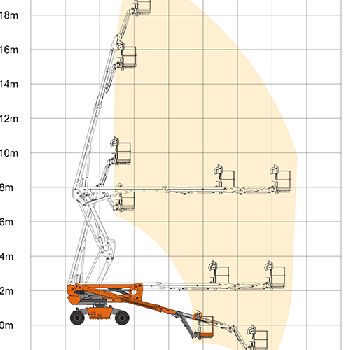

| Description: | Articulating Boom Lifts||Main specifications||● Max.Working Height - 20.23m|● Up And Over Clearance - 7.65m|● S.W.L. - 230kg||Important features||● battery drive lower noise non-pollution|● AC Drive|● Turret Rotation 360°uncontinuous|● Foam-filled Non-marking Tyres||Specifications & data||Size||Max.Working Height - 20.23m|Max.Platform Height - 18.23m|Max.Horizontal Reach -11.14m|Max.Horizontal Reach - 7.65m|Overall Length(Stowed) - 8.61m|Overall Length(Transport) - 6.71m|Overall Width - 2.49m/2.30m|Overall Height - 2.44m/2.45m|Platform Size - 2.20m×0.80m|Ground Clearance - 0.34m|Wheel Base - 2.60m||Performance||S.W.L. -230kg|Max.Occupants -2|Turntable Tailswing -0.63m|Turning Radius(Inside/Outside) -3.37m/5.37m|Turret Rotation -360°continuous|Platform Rotation -±90°|Jib Movement -+70°/-60°|Travel Speed(Stowed) -6.1km/h|Travel Speed(Working) -≤1.1km/h|Gradeability -40%|Maximum Slope -5°|Tyre -315/55 D20||Power||Batteries -8×6V/420Ah|Integrated Charger -48V/35A|Drive Motor -AC 48V/3. |
Plant & Equipment Plant & Equipment DubaiUnited Arab Emirates | |
