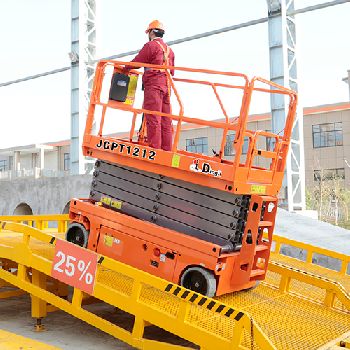

2019 Dingli JCPT1212HD
$ 18,600
| Type: | Buy-It-Now |
| Category: | Scissorlifts |
| Manufacturer: | Dingli |
| Model: | JCPT1212HD |
| Year of Make: | 2019 |
| Description: | Self-Propelled Scissor Lifts|(Hydraulic Motor Drive)||S.W.L. -320kg|S.W.L. On Extention -113kg|Max.Occupants -2||Max.Working Height -12.00m|Max.Platform Floor Height -10.00m||Overall Length -2.48m|Overall Width -1.15m|Overall Height(Rails Up) -2.49m|Overall Height(Rails Down) -1.96m|Platform Size (Length/Width) -2.27m×1.12m|Platform Extenstion Size -0.90m|Ground Clearance(Stowed) -0.10m|Ground Clearance(Raised) -0.019m|Wheelbase -1.87m|Turning Radius(Inside/Outside) -0.0m/2.20m||Drive/Lifting Motor -24V/3.3kW|Travel Speed(Stowed) -3.5km/h|Travel Speed(Raised) -0.08km/h|Up/Down Speed - 45/36sec||Gradeability -25%|Max.Working Slope(CE) -1.5°/3°|Max.Working Slope(ANSI) -2°/3°||Batteries -4x6V/225Ah|Integrated Charger -24V/25A||Tyres -Ø381×127mm|Weight(CE) -2945kg|Weight(ANSI) -2510kg||| |
Plant & Equipment Plant & Equipment DubaiUnited Arab Emirates | |
