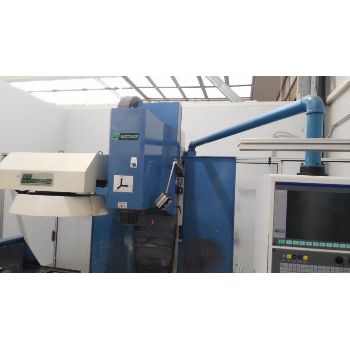

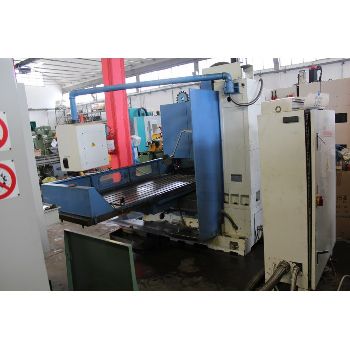

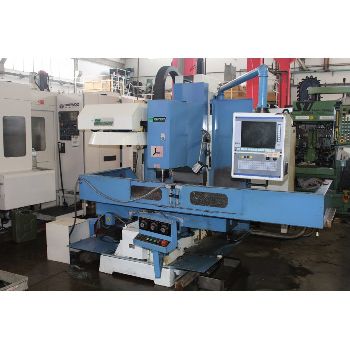

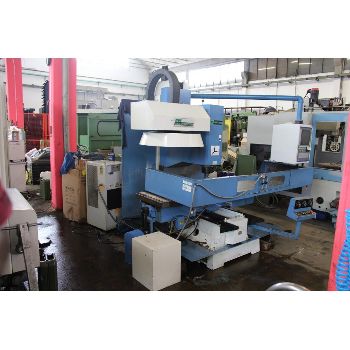

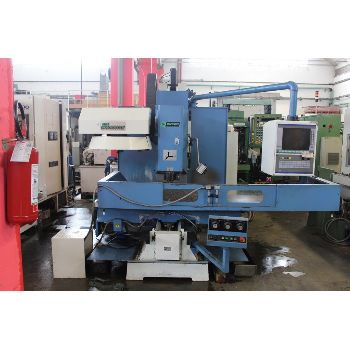

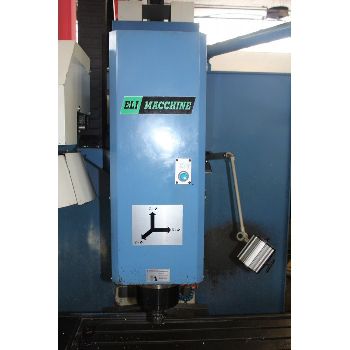

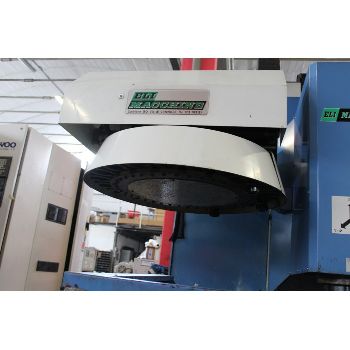

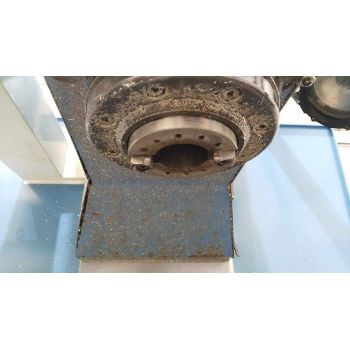

CODE 1087 VERTICAL CNC MACHINING CENTER BRAND ELIMACCHINE MODEL BMT-2473
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Monte San Pietro | Emilia Romagna |
| Category: | Machining Centers |
| Manufacturer: | BMT |
| Model: | BMT 2473 |
| Year of Make: | 2001 |

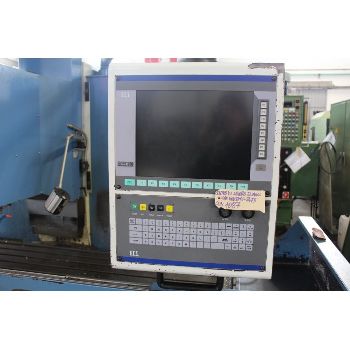

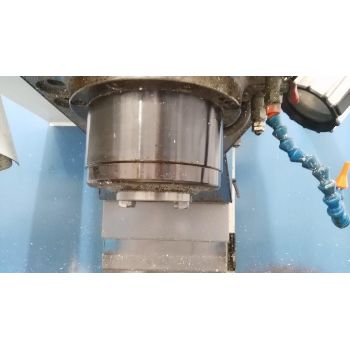

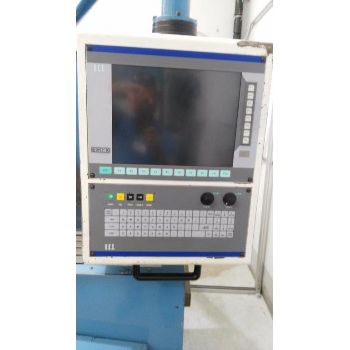

| Description: | CODE 1087 | CNC VERTICAL MACHINING CENTER MARCAELIMACCHINE MODEL BMT-2473 | Model: BMT 2473; | Serial number: 840; | Numerical control: ECS 2400D; | Table size: 1854 x 610 mm.; | Maximum table load: 1.5 ton. ; | Longitudinal travel (X axis): 1640 mm; | Cross travel (Y axis): 800 mm; | Vertical stroke (Z axis): 710 mm; | Mandrel tip: NT / BT / CAT 40; | Spindle speed: UH : High range: 521-4200 RPM, UL: High range: 721-4200 RPM, F: High range: 721-4200 RPM; | Low range: 60-520 RPM, Low range: 60-720 RPM, Low range: 60 -720 RPM, R: 50-6.000 RPM; | PRIMARY MOTOR | UH and F: 7.5 HP; | R: 10 HP; | Recirculating ball screw X.:|40mm.C5 double nut; | Recirculating ball screw Y.:|40mm.C5 double nut; | Recirculating ball screw Z.:|40mm.C5 double nut; | Ball screw recirculation: 10 mm. | Slide size: 1710 x 430 mm; | Guide width Y slide: 600 mm; | Slide guide width Z: 350 mm; | Distance from spindle to column surface: Rigid head (R): 760mm. | column surface: Turret (UH, F): 640mm; | Distance betwee |
