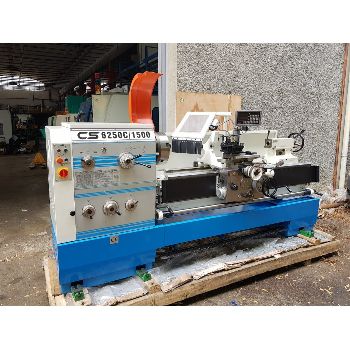

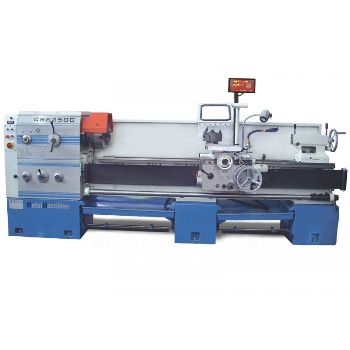

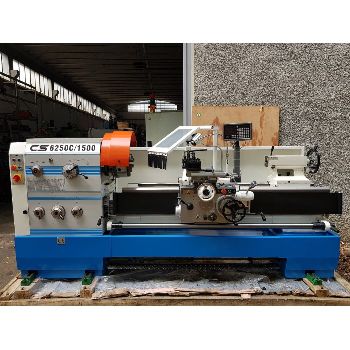

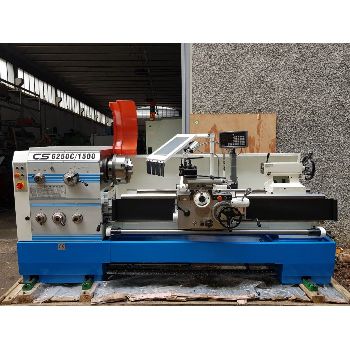

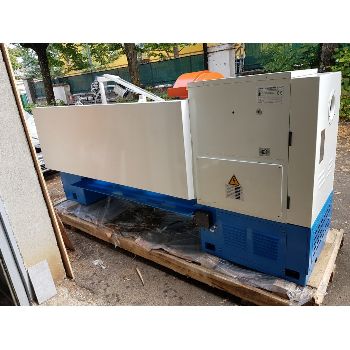

CODE 1065 NEW PARALLEL LATHE WITH MECHANICAL CLUTCH MOD M-CS6250C / 1500
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Monte San Pietro | Emilia Romagna |
| Category: | Drilling Machines |
| Model: | M-CS6250C/1500 |
| Year of Make: | 2018 |
| Description: | CODE 1065 | NEW PARALLEL LATHE WITH MECHANICAL CLUTCH MOD M-CS6250C / 1500 | NEW! | Displayed with 3 AXES: X, Y, Z; | Model: M-CS6250C / 1500; | CAPACITY | Maximum allowable diameter on the table: 500 mm; | Maximum diameter on the transverse guide: 300 mm; | Maximum diameter on the recess: 710 mm; | Maximum length on the recess: 240 mm; | Distance between centers: 1500 mm; | SPINDLE | Spindle nose: ISO 702 / IIN. 8; | Bar passage: 105 mm; | Spindle taper: 113 mm 1: 20; | Spindle speed range: 12 steps, 30-1600 RPM; | Maximum spindle torque output: 1500 Nm; | ADVANCES AND THREADS | Maximum carriage travel : 145 mm; | Maximum transverse carriage travel: 320 mm; | Mother screw pitch: 12 mm / step; | Maximum tool size: 25x25 mm; | Longitudinal axis fast speed: 4,5 m (15 ft) / min, 50 Hz; 5.4m (18 ft) / min, 60Hz; | Transverse axis fast speed: 1.9 m (6.37 ft) / min, 50 Hz; 2.3 m (7.67 ft) / min, 60Hz; Longitudinal advances: 65 types, 0.063-2.25 mm / rev; | Transverse advances: 65 types, 0.02 |
Metalmacchine 2 s.r.l Via Caduti per la Libertà 4/D40050 Monte San Pietro, BolognaItaly SHOW | |
