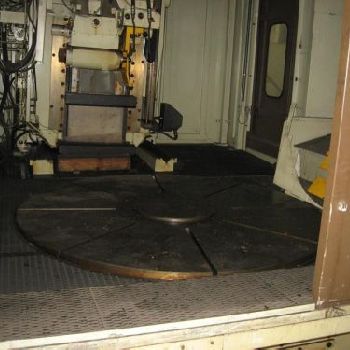

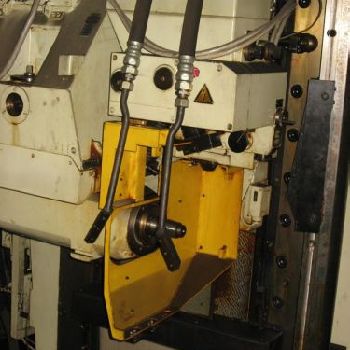

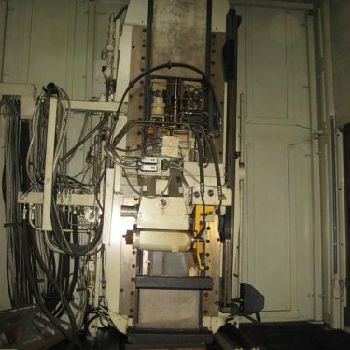

Gear grinder NILES ZSTZ 25
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Grinding Machines |
| Manufacturer: | NILES VEB Werkzeugmaschinenkombinat |
| Year of Make: | 1990 |
| Description: | Max tip circle diameter: 2500 mm|Min root circle diameter: 250 mm|Number of teeth: 16 - 600|Min module: 4|Max module: 25|Max helix angle: 35|Max round table load: 30 ton|Bed slide way: 710 mm|Axis slide way (stroke): 760 mm|Round table diameter: 2000 mm|Table bore diameter: 450 mm|Depth of table bore: 2000 mm|Grinding worm diameter: 300 - 400 mm|Grinding worm width: 127 mm|Number of turning of grinding worm spindle per minute: 2150|Total power: 45 KW|Space required (LxWxH): 9600x7700x4475 mm|Machine weight: 47 ton |
| Technical Specifications: | Max tip circle diameter: 2500 mm Min root circle diameter: 250 mm Number of teeth: 16 - 600 Min module: 4 Max module: 25 Max helix angle: 35 Max round table load: 30 ton Bed slide way: 710 mm Axis slide way (stroke): 760 mm Round table diameter: 2000 mm Table bore diameter: 450 mm Depth of table bore: 2000 mm Grinding worm diameter: 300 - 400 mm Grinding worm width: 127 mm Number of turning of grinding worm spindle per minute: 2150 Total power: 45 KW Space required (LxWxH): 9600x7700x4475 mm Machine weight: 47 ton |
