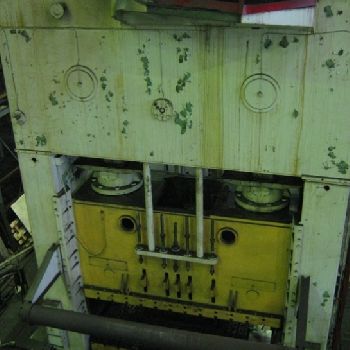

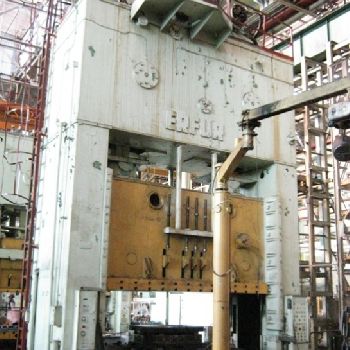

Straight side sheet stamping press ERFURT PKZZ I 1250/4000
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Stamping Presses |
| Manufacturer: | ERFURT |
| Year of Make: | 1978 |
| Description: | Max. slider force at the distance of 12,5 mm in the lower dead point: 1250 tons|Slider force at the distance of 250 mm in the lower dead point: 350 tons|Number of single strokes per minute: 11|Slider stroke: 630 mm|Slider adjustment: 630 mm|The closed height: 1165 mm|-Max. stroke: 250 mm|-Stroke adjustment: 250 mm|-Max. holding force: 250 tons|-Max. ejection force: 40 tons|Table dimensions: 4000x1800 mm|Bolster dimensions: 3950x1800 mm|Table gap: 3750x1300 mm|Main motor power: 132 kW|Stay spacing: 4000 mm|Press weight: 215000 kg|Weight of a table in assembly with an exhaust pillow and a plate of a pusher: 42600 kg|Weight of a table (without built in details): 27400 kg|Weight of an exhaust pillow: 3000 kg|Weight of a plate of a pusher: 5400 kg|Weight of a lateral rack in assembling: 8000 kg|Weight of a cross-arm in assembling: 44000 kg|Weight of a cross-arm without built in details: 24800 kg|Weight of the top part of a cross-arm: 7800 kg|Weight of a shaft of a flywheel with a pine fores |
| Technical Specifications: | Max. slider force at the distance of 12,5 mm in the lower dead point: 1250 tons Slider force at the distance of 250 mm in the lower dead point: 350 tons Number of single strokes per minute: 11 Slider stroke: 630 mm Slider adjustment: 630 mm The closed height: 1165 mm -Max. stroke: 250 mm -Stroke adjustment: 250 mm -Max. holding force: 250 tons -Max. ejection force: 40 tons Table dimensions: 4000x1800 mm Bolster dimensions: 3950x1800 mm Table gap: 3750x1300 mm Main motor power: 132 kW Stay spacing: 4000 mm Press weight: 215000 kg Weight of a table in assembly with an exhaust pillow and a plate of a pusher: 42600 kg Weight of a table (without built in details): 27400 kg Weight of an exhaust pillow: 3000 kg Weight of a plate of a pusher: 5400 kg Weight of a lateral rack in assembling: 8000 kg Weight of a cross-arm in assembling: 44000 kg Weight of a cross-arm without built in details: 24800 kg Weight of the top part of a cross-arm: 7800 kg Weight of a shaft of a flywheel with a pine forest with a muff and brakes: 16900 kg Weight of a slider in assembling: 33600 kg Weight of coupling bolts: 3400 kg |
