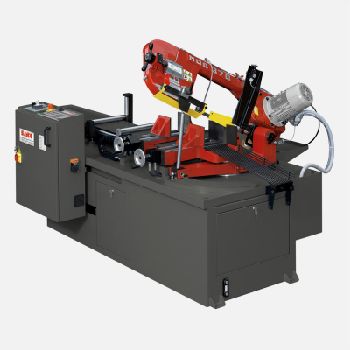

Bianco 370 S CN band saw for metal
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Metal Cutting Band Saws |
| Manufacturer: | BIANCO |
| Model: | 370 S CN |
| Year of Make: | 2007 |
| Description: | 90 mm 280 240 330x240 |45 mm 225 215 230x140 |60 mm 140 140 140x130 |Ribbon 3120x27x0.9 |Automatic band sawing machine with arc movement, vices and advancement on command |Hydraulic. Descent and ascent of the blade controlled by a feeler pin. Cutting feed with |infinitesimal regulation. Manual setting of the cutting length by handwheel, |quantity of pieces to be cut and machine functions managed by PLC. Mechanical blade tensioning |controlled by limit switch. |IT IS ADVISABLE FOR AUTOMATIC CUTTING DO NOT EXCEED FULL DIAMETERS |OF 150 mm. |FEATURES |- Possibility of cutting up to 60 right |- Manual setting of the cutting length by handwheel |- Quantity of pieces to be cut and machine functions managed by PLC |- Reduction unit consisting of hardened and ground gears |- Mechanical blade tensioning controlled by limit switch |- 800 mm carriage travel |STANDARD ACCESSORIES |- Piece unloading chute |
| Technical Specifications: | Cutting width: 330.0 mm Cutting height: 240.0 mm Blade length: 3120.0 mm Blade width: 27.0 mm Table tilting in °: 60 ° Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
