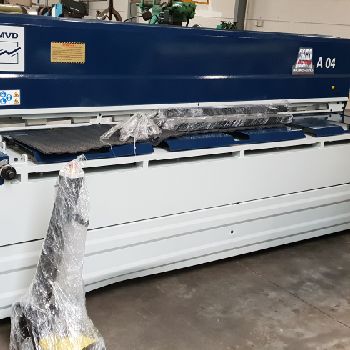

MVD A04 2000 mechanical shear
$ 23,689
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Plate Shears |
| Manufacturer: | MVD |
| Model: | A04 2000 |
| Year of Make: | 2000 |
| Description: | 1- STANDARD EQUIPMENT |Motorized rear stop Lg 750 mm |with display of dimensions on counter ELGO 9521 |Table equipped with balls |High resistance blade set |1 squared squareness rule |2 rules sheet metal |Pedal with emergency stop |Cutting blade protection |Lighting of the cutting line|Cutting capacity (450N / mm2) mm 4 4 |Cutting length mm 2 100 2 600 |Gooseneck mm |Backgauge capacity mm 750 750 |Cutting angle 1.7 1.7 |Cutting speed Cp / min 42 34 |Number of cylinders clamp hydraulic sheet |Main engine power Kw 7,5 7,5 |Oil tank capacity Lt |Power supply Tri 380 380 |Space requirement with deployed desk |Length mm 2,500 3,100 |Depth (with square ruler) mm 2 250 2 250 |Height mm 1,350 1,350 |Weight Kg 2,500 2,900 |Price Ht 19.200,00 21.200,00|SUPPLY CONDITIONS for metropolitan France |Price |They are understood HT, material rendered FRANCO on unloaded truck. |- Unloading and setting up the machine are done by you. |Guarantee |12 months parts and labor. |
| Technical Specifications: | Cutting length: 2100.0 mm Max. cutting thickness: 4.0 mm Max. cutting angle: 1.7 ° Min. cutting angle: 1.7 ° Back gauge type: Motorised Backgauge Backgauge adjustment: 750.0 mm Sheet support: No Length x width x height: 2500.0 mm × 2250.0 mm × 1350.0 mm Weight: 2500.0 kg State: good At local norms: yes Status: visible |
