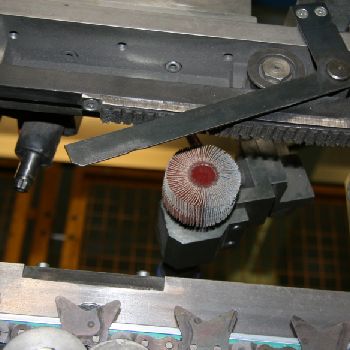

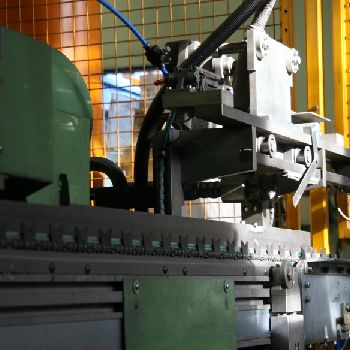

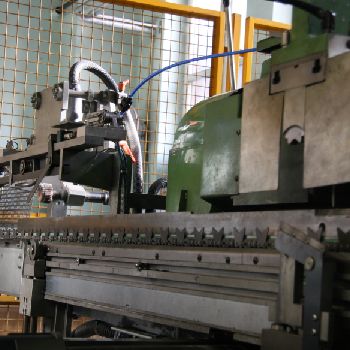

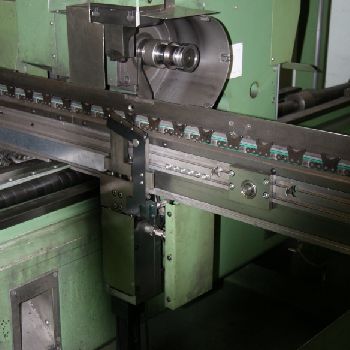

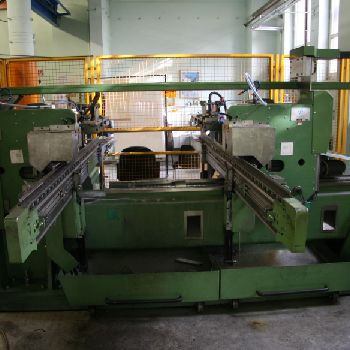

Progress KBH 4849 Edge Deburring/Milling Machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Deburring Machines |
| Manufacturer: | PROGRESS |
| Model: | KBH 4849 |
| Year of Make: | 2003 |
| Description: | Edge Deburring/Milling Machine |- CNC milling and deburring machine for tube ends or round steel on both sides. |- Material feed via conveyor belt, travel approx. 3 300 mm. |- Brush unit type PGAS 8/100 V-HV on both sides/opposite, speed 10 000 rpm. |- Operation via control panel on electric cabinet|Support: |- 2 pieces, 1x movable and 1x fixed |- lateral displacement right support Length 1725 mm by hand |- working paths transverse=5 - 50 mm; longitudinal=5 50 mm |- working spindle = speed max. 320 rpm|Technical Details: |- workpiece length: 130 - 2000 mm |- diameter min.: 10 mm |- diameter max.: 60 mm |- control: Fagor 10/102 S |- dimension machine approx.LxWxH: 3,8 x 3,8 x 1,9 m |- dimensions electric cabinet LxWxH: 1,2 x 0,6 x 2,2 m |- machine weight: approx. 4 500 kg |
| Technical Specifications: | Capacity - Diameter: 60.0 mm Length: 2000.0 mm Speed: 10000 rpm Length x width x height: 3800.0 mm × 3800.0 mm × 1900.0 mm Weight: 4500.0 kg State: good At local norms: --------- Status: under power |
