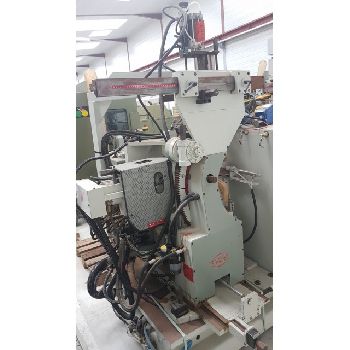

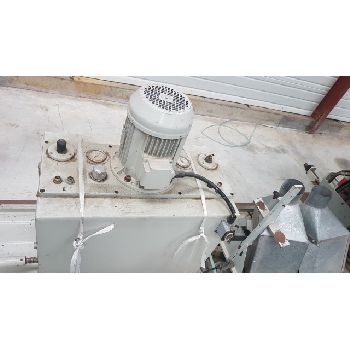

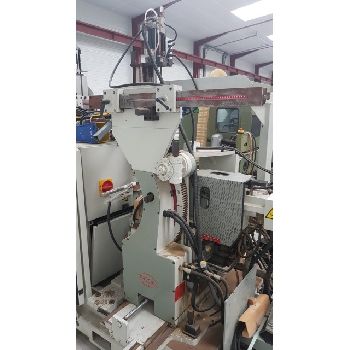

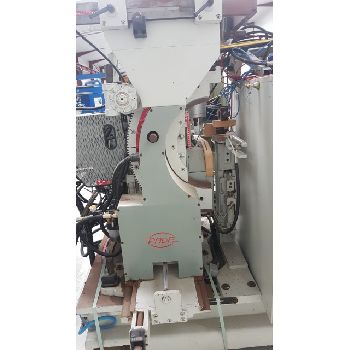

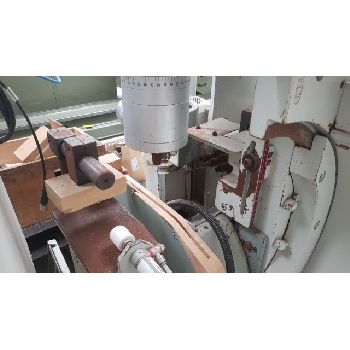

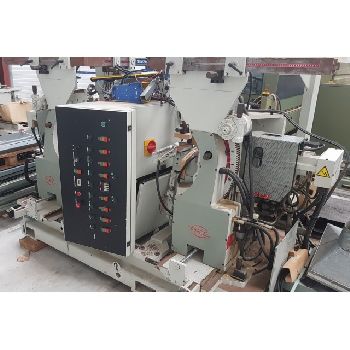

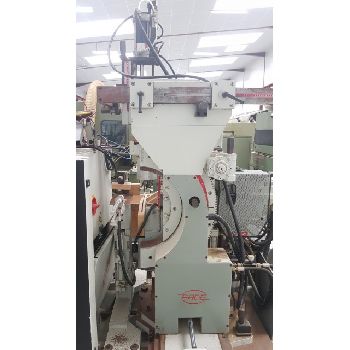

Pade NST 3000 CE Tenoning machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Tenoning Machines |
| Manufacturer: | PADE |
| Model: | NST 3000 CE |
| Year of Make: | 2008 |
| Description: | Pade |Machines with 3 machining operations: |- 2 x Circular blade crosscut saw |- 2 x Standard drill head can be rotated 360. |- 2 x Router diam. 30mm, height 120mm, for milling cutters max. diameter 160mm. |Features : |- Maximum working length: 3000 mm. |- Minimum working length: 240 mm. |- Inclination horizontal axis: - 10 / + 45 |- Vertical axis rotation: - 10 / + 50. |- Diameter of circular blades: 2 x 400 mm. |- Blade rotation speed: 3000 rpm. |- Rotational speed of rotors: 8000 rpm. |- Speed of rotation of the drums: 3000 rpm. |- Blade motor power: 2 x 2.25 KW |- Drilling motor power: 2 x 2.25 KW |- Milling motor power: 2 x 4 KW |- Motor power longitudinal opening: 1.5 KW |- Power of hydraulic central motor: 4 KW |- Total installed power: 25 KW |- Weight of the complete machine: 3600 Kg |Machine complete and in working order, in compliance with CE standards |
| Technical Specifications: | Max. woodpiece length: 3000.0 mm Min. woodpiece length: 240.0 mm Type: Double Working width: 0.0 mm Nbr of cutting units: 0.0 Length x width x height: - × - × - Weight: 3600.0 kg State: good At local norms: yes Status: visible |
