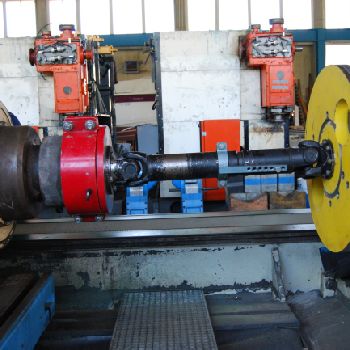

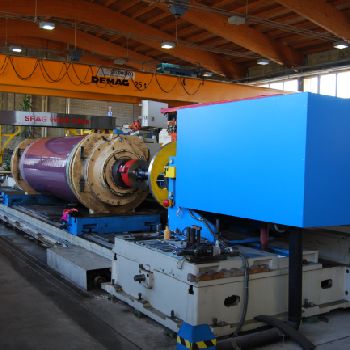

Waldrich Siegen Roll grinding Machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | Surface Grinding Machines |
| Manufacturer: | Waldrich Siegen |
| Model: | - |
| Year of Make: | 2009 |

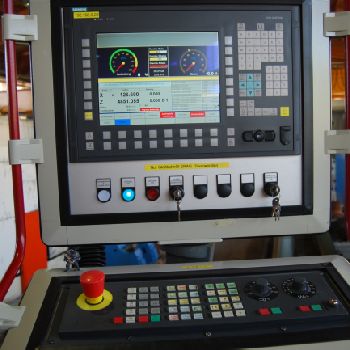

| Description: | Roll grinding Machine Waldrich Siegen |Max. Grinding Diameter 1800 mm |Min. Grinding Diameter 80 mm |Max. Grinding Length 10000 mm |Min. Grinding Length 800mm |Control Unit Siemens 8400/Simodrive 6110 |Max.Workpiece weight 50t |Machine weight approx. 78t |Speeds |Grinding wheel spindle I=1, 5-1400 rpm |Roller driver GS1i41.5 n=0-150 rpm, GS2i10.20 n=0-150 rpm |Z-feed 10 m/min |X-feed 5 m/min |Q1-feed 2 m/min |Q2-feed 2 m/min|Axis movements |Z-axis 11019 mm |X-axis 850 mm |U-axis -4.91 / +4.95 = 9.86 mm |Q1-axis 755 mm |Q2-axis 755 mm |
| Technical Specifications: | Table length: 10000.0 mm Table width: 1800.0 mm Manual: No CNC: Yes CNC type: Siemens 8400 Max piece weight: 50000.0 kg Max. wheel speed: 1400 rpm Length x width x height: - × - × - Weight: 78000.0 kg State: good At local norms: --------- Status: visible |
