TRAUB TNK 36
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Turn-Mill Centers |
| Manufacturer: | TRAUB |
| Model: | TNK 36 |
| Year of Make: | 2001 |

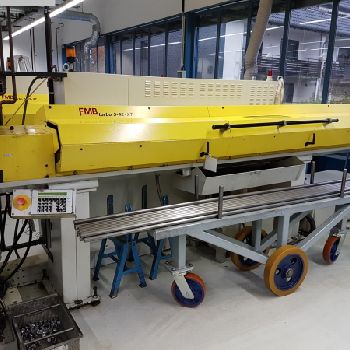

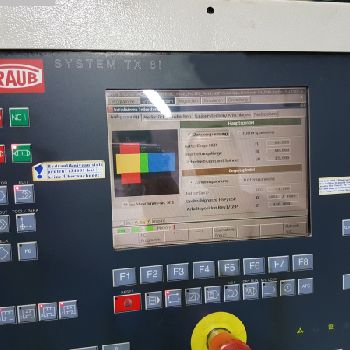

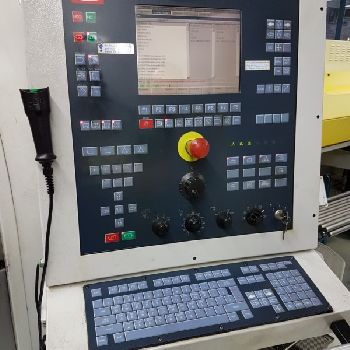

| Description: | TECHNICAL DETAILS Turning diameter mm turning length mm control TRAUB TX8i Bar capacity 36 mm Spindle speeds Max. 6300 rpm Main drive motor 10.7 kW Counterspindle drive power 10.7 kW Total power requirement 33 kW Machine weight approx. t Space required approx. m; DESCRIPTION * Main and counterspindle with C-axis 0.001 ° * Bar loader FMB turbo 5-42 XT * Tool carrier I (X / Y / Z): - 12-fold revolver, tool drive 6000 rpm, 5.5 kW - Travels: X-axis 50 mm, Y-axis +/- 40mm, Z-axis 100 mm * Tool carrier II (X / Z): - 5-station front attachment, tool drive 6000 rpm, 5.5 kW - Travels: X-axis 370 mm, Z-axis 250 mm * Tool carrier III (X / Y): - 5-station back unit, tool drive 6000 rpm, 5.5 kW - Travels: X-axis 73 mm, Y-axis +/- 50 mm |
Knops Werkzeugmaschinen GmbH & Co. KG Ronsdorfer Strasse 14340233 DüsseldorfGermany SHOW |
