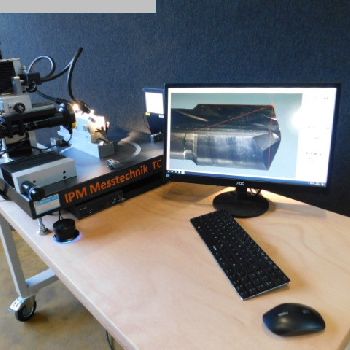

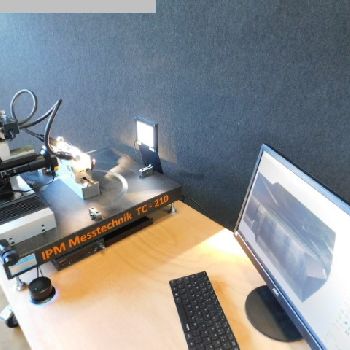

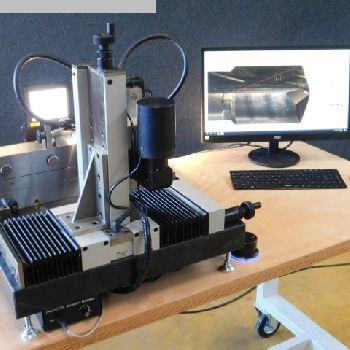

Measuring system WMTR TC 210
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Günzburg |
| Category: | Measuring Equipment |
| Manufacturer: | WMTR |
| Model: | TC 210 |
| Description: | WMTR video measuring device TC 210 * 500 x 600 x 50 mm granite base * Digital scales 0.001 mm resolution * 150 mm longitudinal axis * 100 mm vertical axis * Tool holder with prism up to 80 mm diameter * Swivel bracket 210 ° swivel * Image comparisons * Export data to Exel © * multiple measurements of video images * labeling and marking of images * saving and printing of images * free calculation of variables * detailed user management * superimposition of DXF drawings * many special software modules IPM video measuring system complete with: * software with complete measurement data acquisition * creation of Measurement protocols Consisting of: - Computer, monitor, mouse, keyboard - Software VM 2045 - Ring light RL 45-2 ° - Cold aggregate LQ 1600/150 W - 2 LED Spot Lights - LED backlight dimmable - Insertion prism - Zoom lens 10x - 110x with high resolution Color camera - fast adjustment in the longitudinal axis Perfect for the measurement of: - point angles - stepw inching - step lengt |
