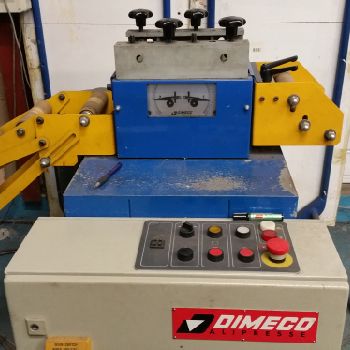

Dimeco Tube profiling line
$ 26,975
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Coilers / Decoilers |
| Manufacturer: | Dimeco |
| Model: | - |
| Year of Make: | 2003 |
| Description: | Tube profiling line|- Dimeco decoiler, type 2210 B: plate diameter 105 - rotation speed 0-24 RPM - motor 0.75 KW - maximum weight 1800 kg |- Dimeco pneumatic shears, type 1722 X-A: Maximum force 1090 kg - nb strokes / min max 300 - material maximum width 152.4 mm - Thicknesses 0.01 to 1.62 mm |- Dimeco fast intake, type 1060 DKSE: Maximum sheet width 210 mm - Maximum thickness 1.5 mm - speed 100 M / min |- Dimeco motorized straigthener, type 1645 A: Width 130 mm - Thickness min 0.4 - max 2 |- Dimeco ultrasound probe |- Pavard Motorized Roller Introduction Table |- Provot cardan profiling table with 13 profile forming stations|This machine was built in 2003. It is able to produce almost all profiles (round, square, open, etc.) in the limit in terms of dimension of a tube of diameter 20 mm thickness 2 mm, and a maximum speed of 50 meters per minute. Of course each profile must have its own forming roll train (13 forming stations possible), the tools in question are designed in "cas |
| Technical Specifications: | Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
