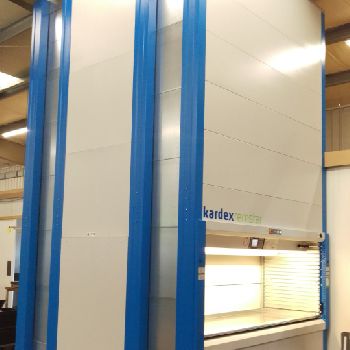

VLM Kardex Shuttle XP500 automated storage system , Height : 5050 mm




REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Pallet Racks |
| Manufacturer: | Kardex |
| Model: | XP500 |
| Year of Make: | 2014 |

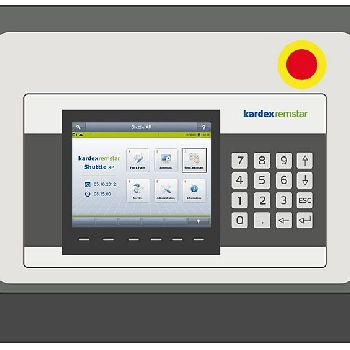

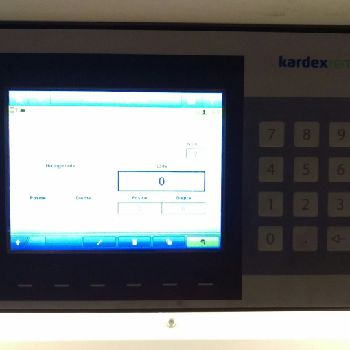

| Description: | VLM Kardex Shuttle XP500 automated storage system|System Type : SHUTTLE-XP-500-2450x813 |Control : Logicontrol, with colour Touchscreen display |Serial No. : 14003558/001 |Year of construction : 2014 !! |Total Load : 2x33500 kg |Load per tray : 370 kg |Tray dimension : 2450 x 813 mm |Number of tray’s : 43 pieces (more on request) |Dimensions Shuttle W x D x H : 2780 x 2921 x 5050 mm |Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA|Technical details : |- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33500 kg |- Maximum tray capacity : appx. 43 tray’s MEDIUM , 370 kg each , |evenly distributed , more tray’s can be ordered. |- Tray dimensions : 2450 x 813 mm |- Machine dimensions : Wide x Depth x Height : 2780 x 2921 x 5050 mm |- Footprint of the system appx: 8 m2 |- Capacity with 43 trays : 86 m2 , every tray is appx. : 2 m2 |- Electronic volume measuring system in 25 mm screen (grid) |- An access opening with sliding doors to protect people and stored goods |- |
| Technical Specifications: | Length x width x height: 2780.0 mm × 2921.0 mm × 5050.0 mm Weight: - State: excellent At local norms: --------- Status: dismantled |
