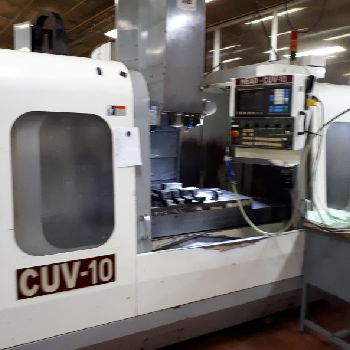

Head KMV Machining center - vertical
$ 21,485
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Vertical Machining Centers |
| Manufacturer: | KMV |
| Model: | KMV |
| Year of Make: | 2000 |
| Description: | FOR SALE : |2 Two HEAD KMV 10 machining center of the year 2000 |Brand HEAD|KMV 10 model|FANUC 0-MD|Year 2001|Stroke X = 1030 mm|Y travel = 520 mm|Z travel 620 mm|Shop 24 tools|Spindle speed 30 ~ 7500 rpm|Bc70vcbw0 |BT40 cone|X axis 1030.0 mm |Y-axis 520.0 mm |Z axis 620.0 mm |Rotary table (4th axis) no |FANUC 0-MD CNC Type |Length of the table 1219.2 mm |Table width 508.0 mm |Weight allowed on the table 798.5 kg |Tool stores 24.0 |BT 40 spindle cone |Rotational speed of the spindle max. 7500 rpm |Spindle motor capacity 11.2 kW |------------------- |Dimensions (W x W x H) 2870.2 mm 2540.0 mm 2971.8 mm |Weight 5989.1 kg |
| Technical Specifications: | Axis X: 1030.0 mm Axis Y: 520.0 mm Axis Z: 620.0 mm Rotary table (4th axis): no Type of CNC: FANUC 0-MD Table length: 1219.0 mm Table width: 508.0 mm Max. part weight: 798.0 kg Number of tool pockets: 24.0 Length x width x height: 2870.0 mm × 2540.0 mm × 2971.0 mm Weight: 5989.0 kg State: good At local norms: --------- Status: under power |
