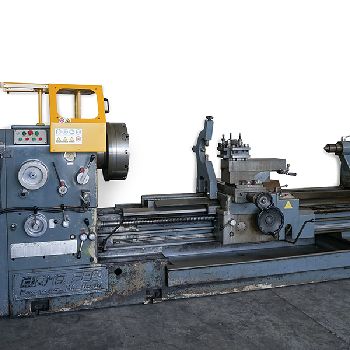

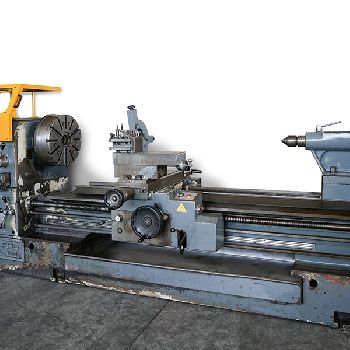

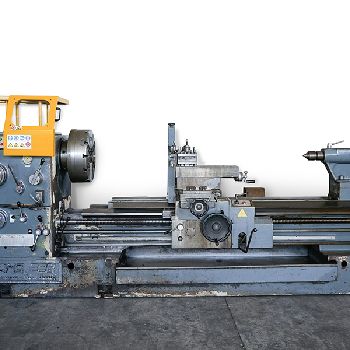

Used Giana TG 410 x 2000 lathe
$ 17,066
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Lathes |
| Manufacturer: | GIANA |
| Model: | TG 410 x 2000 |

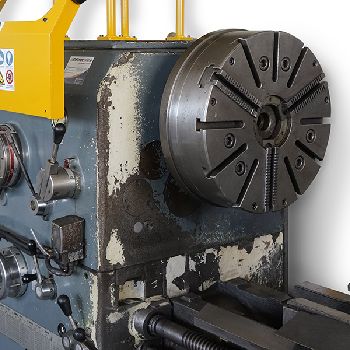

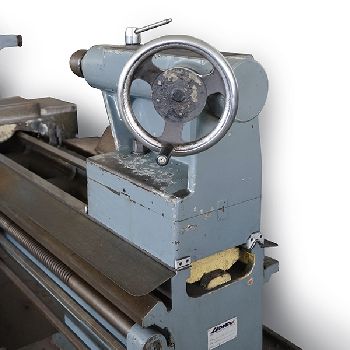

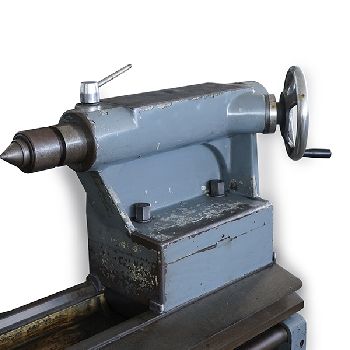

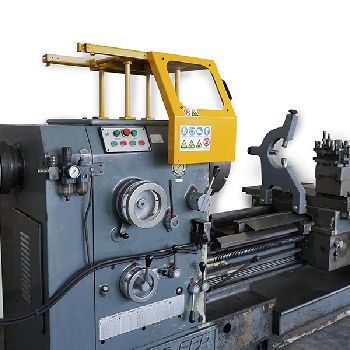

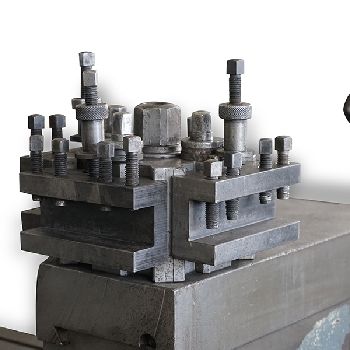

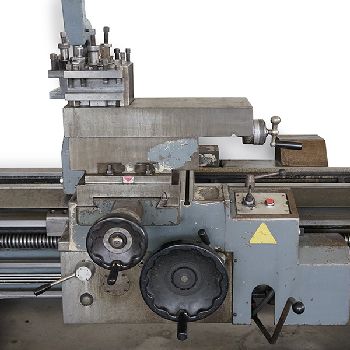

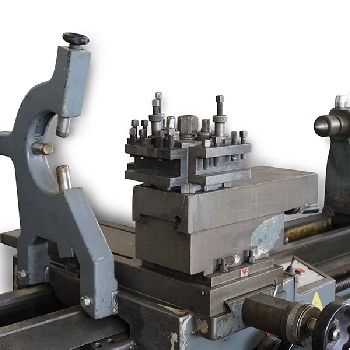

| Description: | Giana parallel lathe model 410x2000 complete with quick-action, pneumatic chuck, folders, bezel and accessories.|Machine sold complete with safety protections |Technical characteristics of the GIANA TG 410 x 2000 lathe|Center height on the bench: 410 mm |Maximum workable diameter on the bench: 820 mm |Maximum workable diameter on the wagon: 280 mm |Distance between centers: 2000 mm |Spindle connection: Camlock - D11 |Bar passage diameter: 150 mm |Self-centering diameter: 500 |Speed range: 9 to 1030 rpm |Max tool size: 41 mm |Tailstock connection: CM5 |Tailstock sleeve travel: 320 mm |Sleeve diameter: 90 mm |Longitudinal / transversal advances |Metric / Whitworth / Modular / Diametral threads |Equipped with two shavings tanks that can be removed on wheels |Engine power: 20 HP 15 kW |Supply voltage: 400 V 50 Hz |Approximate weight: 6000 Kg |Dimensions: 4350 x 1280 x 1800 h mm |
| Technical Specifications: | Length between centers: 2000.0 mm Center height: 410.0 mm Turning length: 2000.0 mm Turning Ø: 820.0 mm Ø above the bed: 820.0 mm Ø above transversing slide: 560.0 mm Spindle nose: Camlock D11 Spindle motor power: 15.0 kW Overhauled: no Length x width x height: 4350.0 mm × 1280.0 mm × 1800.0 mm Weight: 6000.0 kg State: excellent At local norms: yes Status: under power |
