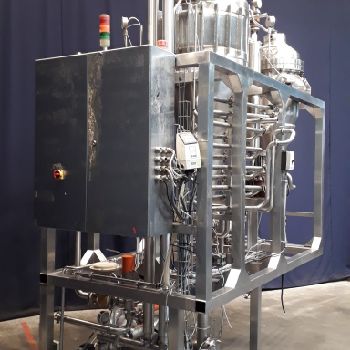

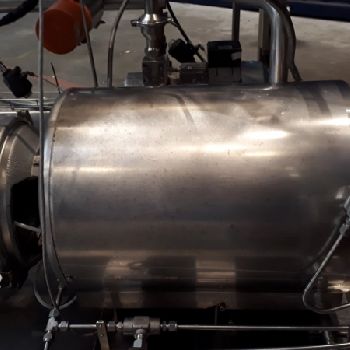

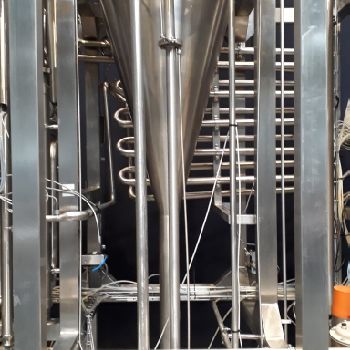

APV DH Add-on Infusion UHT plant Pasteuriser
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Pasteurizing Plants |
| Manufacturer: | APV |
| Model: | DH Add-on Infusion UHT plant |
| Year of Make: | 1997 |

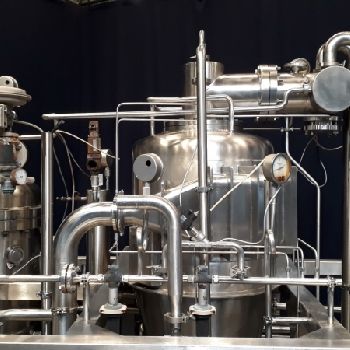

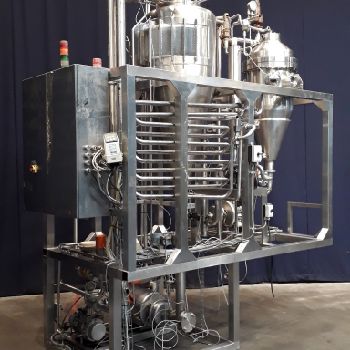

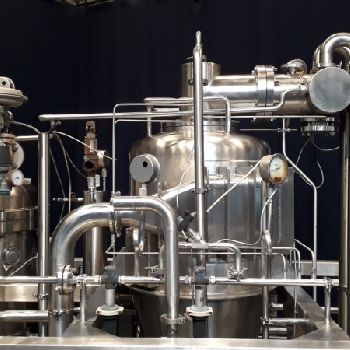

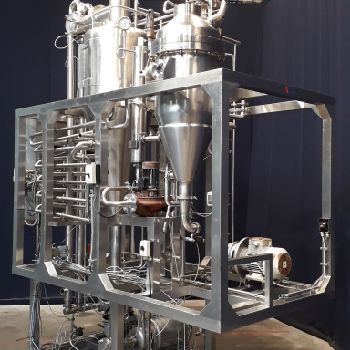

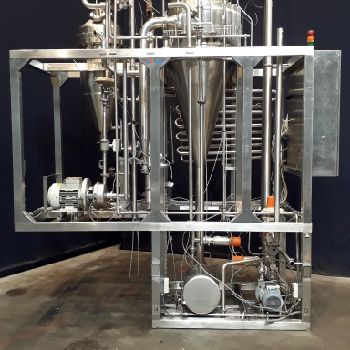

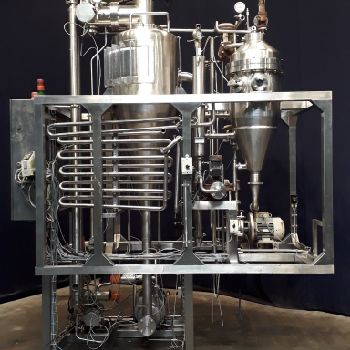

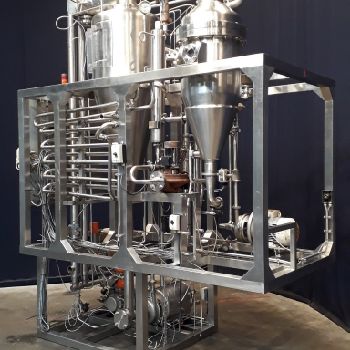

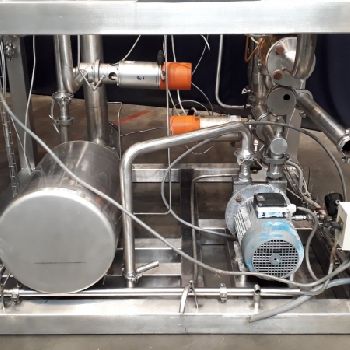

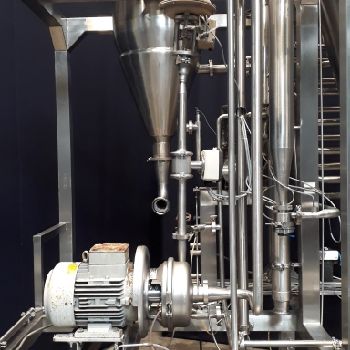

| Description: | Add-On of existing UHT system with a direct UHT infusion system. Temperature profile: the product enters the unit pre-heated at 75C from a pre-heater. In the infusion chamber product is heated to 142/145C by free fall into an saturated atmosphere of live steam. Holding tube of 4 seconds. Cooling by a vacuum flash vessel to 73C. By have a 2C difference in preheating and flashing temperature no dilution or concentration of the product will take place. A vacuum system with tubular condensator and a vacuum pump is installed. All pre-assembled on a frame with interconnecting piping and valves. After this unit the product is pumped to a aseptic homogenizer and/or regenerator/cooler. Advantage: long run times and low product thermal load. |Description UHT plant |Manufacturer APV |Type SDH Add-on Infusion UHT installatie |Product Milk, flavoured milk, coffee cream, cream, ice cream mix, milk shake, tea, coffee or vegetable milk types |Year of manufacture 1997 |Serial number 113792 |
| Technical Specifications: | Max T°: 145 ° Length x width x height: 3300.0 mm × 1600.0 mm × 3900.0 mm Weight: 1690.0 kg State: good At local norms: --------- |
