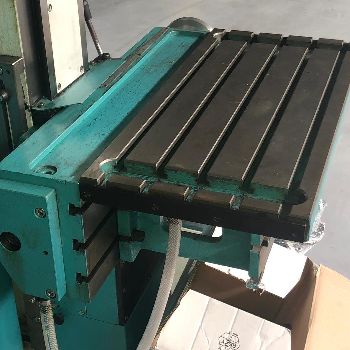

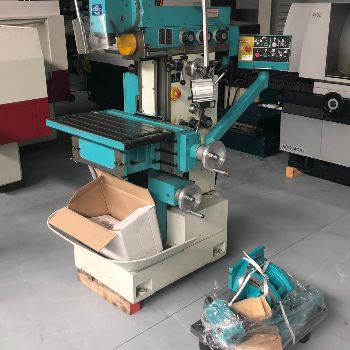

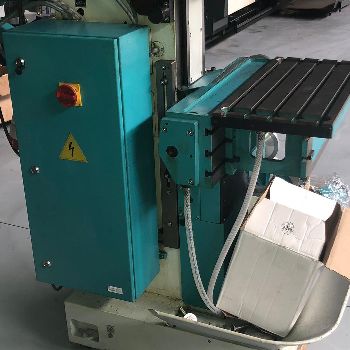

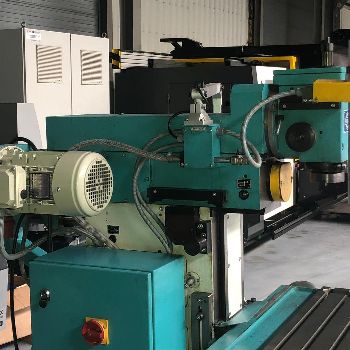

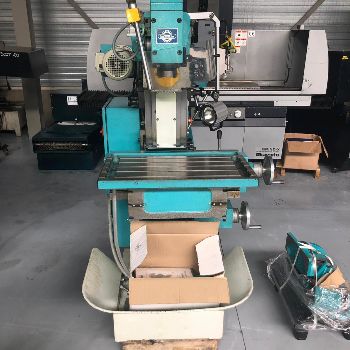

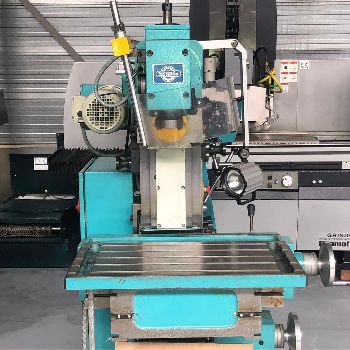

Volz EURO-MILL FUS 22 M universal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Universal Milling Machines |
| Manufacturer: | VOLZ |
| Model: | EURO-MILL FUS 22 M |
| Year of Make: | 2007 |
| Description: | Manufacturer VOLZ Germany |Type EURO-MILL FUS 22 M |Year 2007 |X-Axis 320 mm |Y-Axis 240 mm |Z-Axis 300 mm |Table Length 670 mm |Table Width 320 mm |Table load in kG 75 Kg |Spindle taper ISO 40 Mk/Bt/ISO/HSk |Spindle speeds 2240 Rpm |Feed rate X-Axis 630 mm/Min |Feed rate Y-Axis 630 mm/Min |Feed rate Z-Axis 630 mm/Min |Stroke pinole 60 mm |Rapid Feed rate 1200 mm/Min |DIMENSIONS |Length 1265 mm |Width 1080 mm |Height 1620 mm |
| Technical Specifications: | X axis: 320.0 mm Y axis: 240.0 mm Z axis: 300.0 mm Table length: 670.0 mm Table width: 320.0 mm Max load on table: 75.0 kg Spindle taper: ISO 40 Max. spindle speed: 2240 rpm Overhauled: no Length x width x height: 1265.0 mm × 1080.0 mm × 1620.0 mm Weight: - State: good At local norms: --------- |
