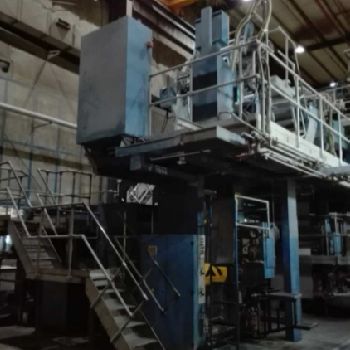

KBA 618 Web continuous printing press
$ 474,320
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Continuous Printing Machines |
| Manufacturer: | KBA |
| Model: | 618 |
| Year of Make: | 1999 |
| Description: | KBA 618 |48 pages |Circumference of the cylinder: 1260 mm |Cutting length: 630 mm with 2 cuts in the circumference |Max bandwidth: 1450 mm |Min bandwidth: 840 mm |Maximum production speed: 35,000 r.p.h. (70,000 i.p.h.) max. |Fabric speed: 12.20 m / sec. |Year of installation: 1999 |Configuration: two-level design, 2-band press, paper scroll direction from left to right |Dimensions: |Approx length: 45.0 meters |Approx width: 10.5 meters |Approx height: 9.0 meters|This high quality commercial press Compact 618 provides the production of up to 2x 48 pages (collection series) of DIN A4 sections. The press is equipped with a high-performance Koenig & Bauer P5 pin folder with one or two chopper-type folding devices (folded into quarters). The Compacta 618 is installed in Europe. You can visit and see in production.|The press is composed mainly of the following components:|2 Automatic Patra A reel supply system - with automatic reel loading, incl. 1 manual unpacking station |
| Technical Specifications: | Nbr print units: 8.0 Speed: 35000 u/h Length x width x height: 45000.0 mm × 10500.0 mm × 9000.0 mm Weight: - State: good At local norms: --------- Status: in production |
