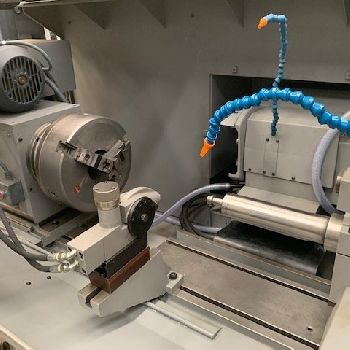

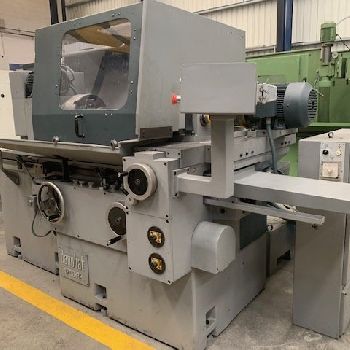

Danobat 1200 RH Cylindrical internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Danobat |
| Model: | 1200 RH |
| Description: | Grinding diameter 10 to 200mm Grinding length 250mm Maximum part length 550mm Dot height 215mm Special spot height 275mm Permissible diameter with normal protection |255mm Permissible diameter with protection |exterior295mm Grinding cone with normal head 300 Weight admitted with normal head 50kgs Weight admitted with reinforced head 100kgs Maximum course of the table 600mm |HEAD PIECE | Engine power 1.2 / 2c.v. R.p.m. of the head 105-160-210-250-320-500 Orifice of the head of parts diam. 27mm MORSE 5 inner cone |REINFORCED PIECE HEAD | Engine power 1.9 / 3c.v. R.p.m. of the head 65-100-130-160-200-320 Orifice of the head of parts diam. 55mm Morse 6 inner cone |PORTAMUELAS SPINDLE | Motor power 5,5c.v. R.p.m. 2,800rpm External diameter of spindle 100mm |VARIOUS | Power of the hydraulic motor pump 1c.v. Power of the refrigeration pump 0.2 c.v. Approximate net weight 2.400kgs |
| Technical Specifications: | Exter: No Inter: Yes CNC: No Max. wheel speed: 500 rpm Spindle motor power: 1.5 kW Length x width x height: - × - × - Weight: 2400.0 kg State: good At local norms: --------- Status: being refitted |
