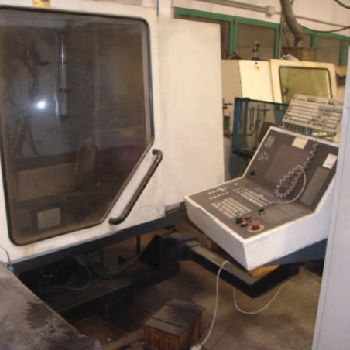

Walter 150 (35 CNC 4) Sharpener
$ 4,985
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Grinding Machines |
| Manufacturer: | Walter |
| Model: | 150 (35 CNC 4) |
| Description: | CNC sharpener: WALTER Model 150 (35 CNC 4) |Technical data: work piece diameter of 320 mm |Work piece length between centers |Max 400 mm Longitudinal movement X-axis 400 mm |Vertical movement Y-axis 250 mm |Cross movement Z-axis 190 mm |Grinding head pivots on the dieVertikal axis 360 degrees |Grinding head pivots on the horizontal axis 220 degrees |Grinding head: wheel diameter of 200 mm |Grinding spindle diameter 70 mm |Speeds pole shift bar 3000-6000/4500-9000 min-1|Power pole changing bar 2.4 / 3.0 KW |Workpiece carrier A-axis Center height with intermediate plate 165 mm, |ISO 50 Tailstock centre height with intermediate plate 165 mm, |taper MK 3 CNC controlled machine axes axis workpiece carrier, |X-axis longitudinal slide. Y axis vertical slide, Z-axis cross slide. |
| Technical Specifications: | Table length: 400.0 mm Table width: 250.0 mm CNC: Yes Type of CNC: HELITRONIK 35 CNC control Max. longitudinal travel: 400.0 mm Cross travel: 190.0 mm Wheel diameter: 200.0 mm Max. wheel speed: 9000 u/mn Length x width x height: - × - × - Weight: - State: good At local norms: yes Status: visible but unplugged |
