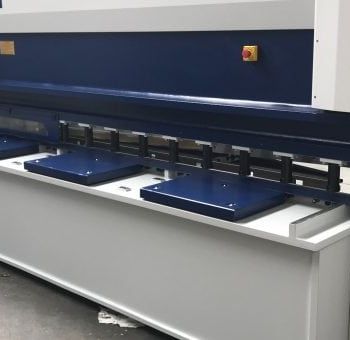

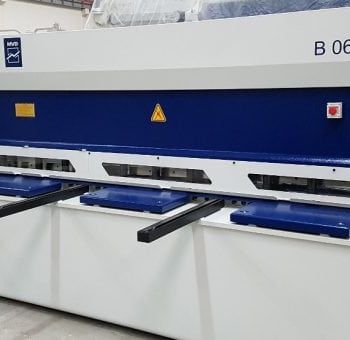

Used MVD iSHEAR B 08-3100 CNC shears
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Plate Shears |
| Manufacturer: | MVD |
| Model: | iSHEAR B 08-3100 |
| Description: | Material cutting capacity 450N / mm2 08 mm|Material cutting capacity 700N / mm2 05 mm|Cutting length 3100 mm|Distance between shoulders 3340 mm|1.9 fixed cutting angle|Blank sheet cylinders 14|Strokes per minute 13 - 19|Notch 250 mm|Motor power 15 kw|Graphimeter and two sheet metal supports 1000 mm|Back registration stroke 1000 mm|Approximate weight 8000 kg|GENERAL CHARACTERISTICS|Rigid welded structure suitably adapted to form a single piece|Hydraulic machine in both descent and ascent, using|components of primary supply houses|Hydraulic cylinders made with solid raw material and machined on grinding machines|to eliminate oil leaks|Back register with ball screws|Electronic positioner for rear register dimensions Nuova Elettr. Mod 911 or ELGO P40 Touch|Manual lever blades interspace|Cut light|- Spins on the bench|Fixed front protection.|Rear protection with photocells|MVD, white and blue colors|Machine in compliance with CE regulations|OPTIONAL ON REQUEST: |- CNC ESA / CYBELEC for ma |
| Technical Specifications: | Cutting length: 3100.0 mm Max. cutting thickness: 8.0 mm CNC: ESA / CYBELEC Max. cutting angle: 1.9 ° Back gauge type: Motorised Backgauge adjustment: 1000.0 mm Sheet support: Yes Length x width x height: - × - × - Weight: 8000.0 kg State: good At local norms: yes Status: visible |
