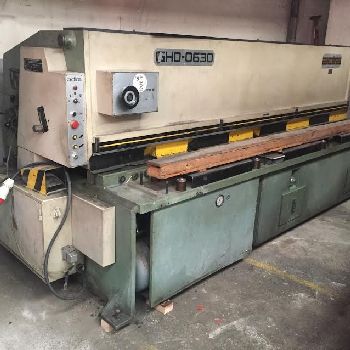

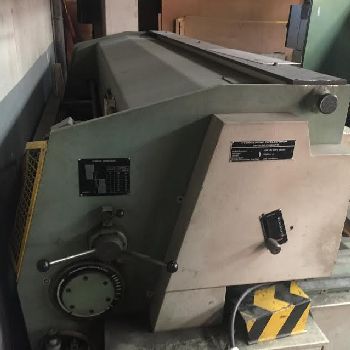

Adira GSO-630 hydraulic shear
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | Plate Shears |
| Manufacturer: | Adira |
| Model: | GSO-630 |
| Year of Make: | 1982 |
| Description: | Technical characteristics|Year of manufacture 1982 |Machine number 990/2793 |Sheet steel, resistance 45Kgf / mm2 6.5mm |Stainless steel sheet, resistance 70Kgf / mm2 4mm |Nominal Cutting Length 3050mm |Shear Length 3100mm |Throat 330mm |Cutting angle 1 1/3 |Distance between blades 0.05 to 0.08mm |Cutting Pressure 28000Kgf |Engine power 14.7kW |Number of holds 16 |Maximum retention / cutting pressure 50% |Minimum Holding Pressure 2000Kgf |Minimum pressure per hold 125Kgf |Stop adjustment 5 to 650mm |Contents of the oil tank 120L |Net weight of the machine (approx.) 6500Kg |Connection to mains 3N / 50Hz / 380V |Adjustment of the safety valve 300Kgf / cm2 |Adjustment of the check valve 40Kgf / cm2 |Backflow safety valve adjustment 100Kgf / cm2 |
| Technical Specifications: | Cutting length: 3050.0 mm Max. thickness: 6.5 mm Max cutting angle: 1.3 ° Length x width x height: - × - × - Weight: 6500.0 kg State: good At local norms: --------- |
