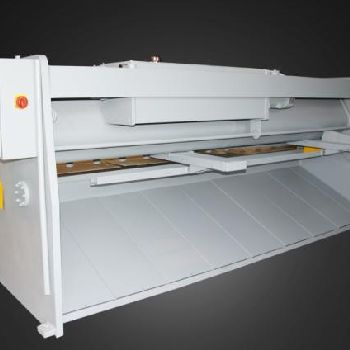

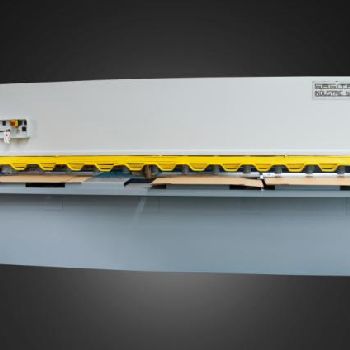

SAGITA BEYELER 4000X6 hydraulic shear
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Plate Shears |
| Manufacturer: | Beyeler |
| Model: | 4000X6 |
| Year of Make: | 1986 |
| Description: | Useful length 4000 mm|Thickness 6 mm|Machine equipped with a motorized backstop|Adjustment of the game between manual blade|technical characteristics |Oscillating cut type < |Shearing length 4000 mm |Steel shearing thickness (45kg / mm) 6 mm |Stainless steel shearing thickness (70kg / mm) 4 mm |Overcapacity not mm |Swan neck 330 mm |Cutting angle from 0.5 to 2.5 |Game between manual blade |Electric backgauge |Backgauge capacity 850 mm |Thin sheet support |No sheet evacuator |Length of the arm equerre 1500 mm |Year 1986 |
| Technical Specifications: | Cutting length: 4000.0 mm Max. thickness: 6.0 mm Max cutting angle: 2.5 ° Min cutting angle: 0.5 ° Back gauge type: Electric Backgauge Backgauge adjustment: 850.0 mm Sheet support: No Length x width x height: 4720.0 mm × 1900.0 mm × 1950.0 mm Weight: - State: good At local norms: --------- Status: visible |
