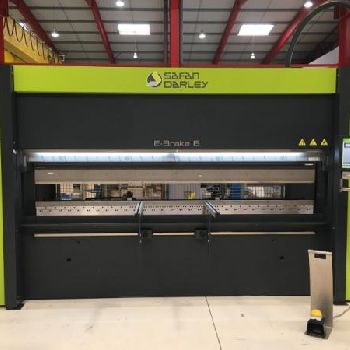

Safan Darley E-brake Premium 100 - 3100 Press brake cnc/nc
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Press Brakes |
| Manufacturer: | Safan |
| Model: | E-brake Premium 100 - 3100 |
| Year of Make: | 2018 |

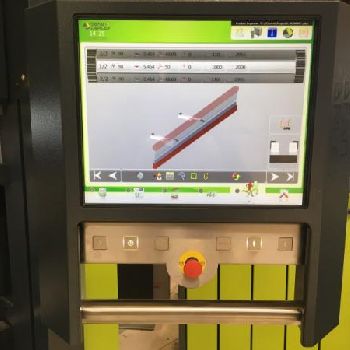

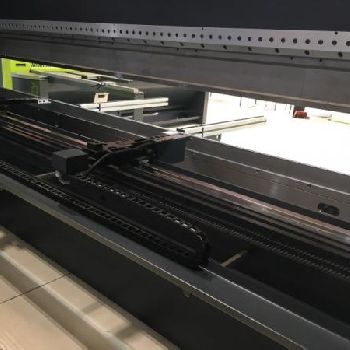

| Description: | E-control numerical control |Touchscreen Yes |Chart Yes |Number of axes 6 axes |Max. Power 100 T |Max length of folding 3100 mm |Passage between uprights 3100 mm |Depth of gooseneck no gooseneck mount arcade |Working height 930 mm |Maximum distance between the table and the slide: Q 590 mm |Sliding stroke (Y1 / Y2) 300 mm |Backstop stroke (X) 600 (total depth 1000) mm |Back stop stroke (R) 200 mm |Thrust fingers (Z1 / Z2) Yes |Mounting type Wila |Intangible barrier security system |Approach speed 75 mm / s |Working speed 20 mm / s |Return speed 130 mm / s |Table bending Yes |Width of the table 60 mm |Power supply 11 kW |Year 2018 |
| Technical Specifications: | Strength: 100 T Folding length: 3100.0 mm CNC: E-control Working speed: 20.0 mm/s Axis number: 6.0 Motor power: 11.0 kW Length x width x height: 4350.0 mm × 1820.0 mm × 2680.0 mm Weight: 7500.0 kg State: good At local norms: --------- |
