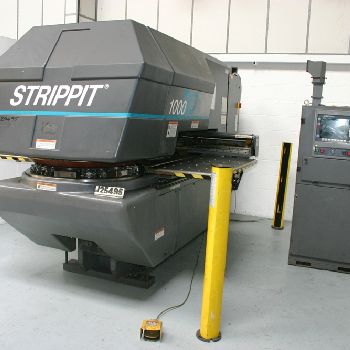

STRIPPIT FC 1000/20 Punching machine / nibbling machine with CNC
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Punching Machines |
| Manufacturer: | Strippit |
| Model: | FC 1000/20 |
| Year of Make: | 1998 |
| Description: | Year of Manufacture1998 |Control Strippit Model 404561-000 |Material thickness1/4" / 6mm |Hole size3.1/2 / 89mm |Sheet thickness1/4 / 6mm |Sheet size40 x 50 / 1016mm x 1270mm |Sheet weight 93 kgs |Throat depth 40 / 1016mm |X axis travel40 / 1016mm |Y axis travel51 / 1295mm |Hit rate200 Hits per Minute @ 1 / 25.4mm Centres |Input380/420/3/50 Aac|Equipment Rounds 2.5mm, 4.1mm, 6mm, 6.35mm, 17mm, 17.5mm, 18mm, 20.6mm, 22mm, 22.5mm, 25mm, 25.4mm, 34.6mm, 36.5mm, 38mm, 40mm, 50mm, 55mm, 60mm, 62mm, 65mm, 68mm, 70mm & 73mm. Obrounds 8mm x 4mm, 11mm x 4.5mm, 14mmx 7mm, 25.5mm x 10mm, 33.7mm x 28.16mm|Equipment-Continued 34mm x 6mm, 35mm x 4mm, 40mm x 3mm, 40mm x 4mm, 70mm x 2mm, 75mm x 6mm & 88mm x 18mm, Rectangular 15.3mm x 12.7mm, 25.4mm x 19mm, 28.2mm x 21mm, 31mm x 23.5mm, 32mm x 12mm, 38mm x 16mm, 39.6mm x 25mm, 41mm x 28.3mm, 45.1mm x 8mm, 57mm x 18mm, 57mm x 20mm|Equipment-Continued& 58mm x 11.4mm. Squares 17.6mm, 25mm, 33mm & 50.8mm|Dimensions & weight |
| Technical Specifications: | Power in tons: 20 T Metal length: 1270.0 mm CNC type: Strippit Model 404561-000 Metal width: 1016.0 mm Max steel thickness: 6.0 mm Number of strokes per minute: 200.0 Max. Weight of the workpiece: 93.0 kg Length x width x height: - × - × - Weight: - State: good At local norms: yes Status: visible |
