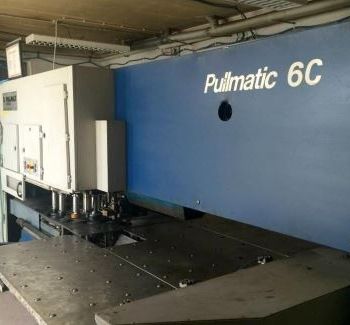

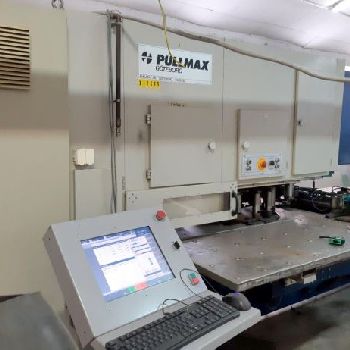

Pullmax Pullmatic 6C CNC punching machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Punching Machines |
| Manufacturer: | PULLMAX |
| Model: | Pullmatic 6C |
| Year of Make: | 1991 |
| Description: | Technical data : |- CNC control: BECKHOFF |- maximum impact force: 30 tons |- maximum sheet thickness: 6.35 mm |- X axis length: 1300 mm |- length of the Y axis: 1500 mm |- revolver: 15 |- maximum sheet metal working dimensions plus reposition: 1500 x 3000 mm |- beat speed of the ram in a distance of 1 mm: 60 m / min. |- punching accuracy: +/- 0.1 mm |- number of plates holding the plate: 2 |- dimensions of the machine (length x width x height): 6000 x 2000 x 2200 mm |- weight: 12.5 tons|Punching equipment PULLMAX PULLMATIC 6C: |- CNC control: BECKHOFF |- revolver with long inserts: increases tool and revolver life (axiality between the punch and the die) |- working table: with brushes - reduce the noise and shocks of the punching machine and protect the surface of the workpiece |- large work table: adapted for processing large sheets. |- machine frame: construction eliminating internal stresses |- paws / handles of punching machines: equipped with a self-defense func |
| Technical Specifications: | Power in tons: 30 T Metal length: 1300.0 mm CNC type: Beckhoff Metal width: 1500.0 mm Max steel thickness: 6.35 mm Length with repositioning: 1500.0 mm Metal width with repositioning: 3000.0 mm Length x width x height: 6000.0 mm × 2000.0 mm × 2000.0 mm Weight: 12500.0 kg State: good At local norms: --------- |
