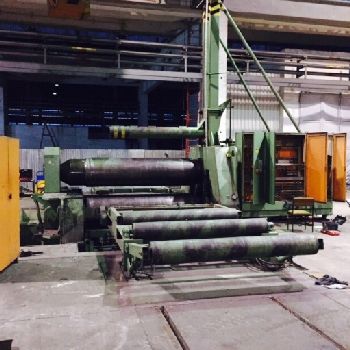

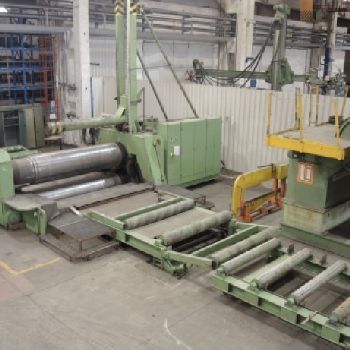

Haeusler VRM HY Plate rolling machine - 4 rolls
$ 592,367
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Plate Rolling Machines |
| Manufacturer: | HAEUSLER |
| Model: | VRM HY |
| Year of Make: | 1994 |
| Description: | SPECIFICATIONS |Control Haeusler 8 axis |Operation Hydraulic / Mechanical Hydraulic |3 or 4 roll roll 4 roll |Plate thickness 110 mm |Roller length in mm 3000 mm |Max. roll thickness at product 2.500 110 mm |Max. bend at product 2.500 90 mm |Above roll diameter 780 mm |With roller diameter 750 mm |They roll diameter 570 mm |Power kW 180 kW |Work speed in M / Min. 2/4/5/6 / 7.2 M / min. |DIMENSIONS |Length 9000 mm |Width 5800 mm |Height 8290 mm |
| Technical Specifications: | Working length: 3000.0 mm Max thickness: 110.0 mm Mechanical/Hydraulic: Hydraulic Upper roll Ø: 780.0 mm Lower/lateral rolls Ø: 570.0 mm Motor power: 180.0 kW Prebending: Yes Length x width x height: 9000.0 mm × 5800.0 mm × 8290.0 mm Weight: - State: good At local norms: --------- Status: visible |
