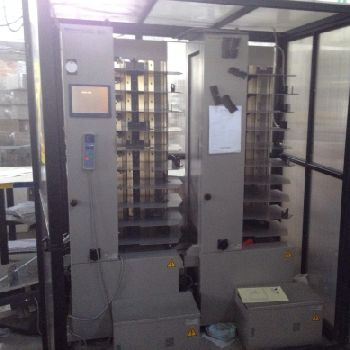

Horizon VAC -100M Collator


$ 18,708
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Collators |
| Manufacturer: | Horizon |
| Model: | VAC -100M |
| Year of Make: | 2002 |
| Description: | Modular units for suction collating system; card through cylinders Power |rotary blowers with aspiring and front socket of the topsheet; to monitor Commands "Touch-Screen; |The jogger, equipped with independent reporting engine, perfectly aligns the sheets via vibratory movement. |- Maximum paper size: 350 x 500 mm. |- Minimum Paper Size: 120 x 148 mm. |- Stack height in the station: 55 mm. |- Paper grammage: from 50 to 250 gr / m2 |- Production speed (single unit): over 8,900 dossiers / hour (A4). |- Installed power and voltage: 1.8 Kw - 230V, single phase, 50 Hz. |- Dimensions (tower): 914 (L) x 650 (D) x 1962 (H) mm |- N. 2 Towers with 10 stations each (total 20 stations) |- Ability to operate the machine using a dual loop half the stations |- Alternator criss-cross horizon dossiers |
| Technical Specifications: | Length x width x height: - × - × - Weight: - State: excellent At local norms: yes Status: under power |
