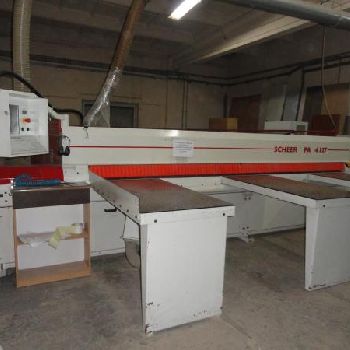

Scheer PA 4137; PA4137 Panel saw
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Panel Saws |
| Manufacturer: | SCHEER KOCH |
| Model: | PA 4137; PA4137 |
| Year of Make: | 2004 |
| Description: | Type/Model: PA 4137; PA4137 |Year of construction: 2004 |Machine Condition: Very Good |Description:|Panel Saw SCHEER PA 4137 with Frontal Loading|Type/Model: 4137|Construction Year: 2004|Technical Details: |* Useful working cutting width 4.200 mm |* Useful working cutting length 4.200 mm |* Max. main blade projection 77 mm |* Automatic lateral aligner with pneumatic cylinder|FEEDING AND STACKING OF THE PANELS |* Panels stacking: front and manual |* Panels loading: front and manual |* Supporting table under the pusher carriage equipped |with idle rollers to avoid any scratching on the panels|FRONT SUPPORTING TABLES |* Nr. 1 fixed front table with with additional guide |covered by bachelite - air blowing device |* Nr. 2 front tables - covered by bachelite - air blowing device|SAW CARRIAGE TECHNICAL DATA |* Speed of saw carriage: - forward 0-70 m/min. - back 70 m/min |* Carriage with main blade and scoring saw units |* Main blade - motor power 7 KW |* Scoring saw - max. |
| Technical Specifications: | Cutting length: 4200.0 mm Cutting height: 4200.0 mm Blade diameter: 200.0 mm Engine power: 7.0 kW Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
