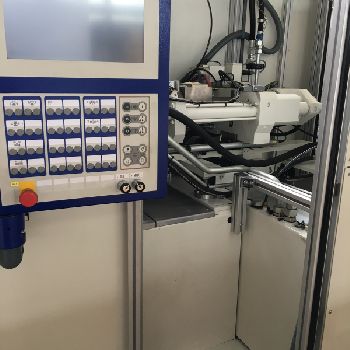

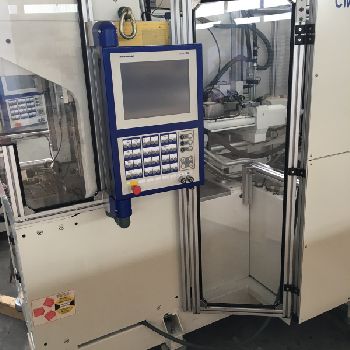

Battenfeld CM 40/130 UNILOG B6S Injection moulding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Austria |
| Category: | Injection Molding Machines |
| Manufacturer: | Battenfeld |
| Model: | CM 40/130 UNILOG B6S |
| Year of Make: | 2011 |
| Description: | Offer: |Battenfeld CM 40/130 UNILOG B6S|Year of construction 2011 |cca. 10500 w h|2 injection molding machines Battenfeld Type: CM 40/130 |Battenfeld Type: CM 40/130|Technical Data Injection unit: |Injection unit 130 |Screw diameter 25 mm |Specific injection pressure 2218 bar |Calculated stroke volume: 61.40 cm |Max. Spray weight: 55.9 g |Worms L / D Ratio 22.0|Technical specifications: |Closing force 400 kN |Light beam spacing 0 mm |Min. Tool height 280 mm |Max. Tool installation height 0 mm |Opening distance 340 mm |Max. Distance of clamping plates 620 mm |Size of clamping plate 435 mm x 300 mm |
| Technical Specifications: | Clamping force: 40 T Screw diameter: 25.0 mm Shot volume: 61.4 cm³ Shot weight: 55.9 g Pressure on material: 2218 bar Platen lenght: 435.0 mm Platen width: 300.0 mm Length x width x height: - × - × - Weight: - Hours under power: 10500 hours State: excellent At local norms: --------- Status: dismantled |
