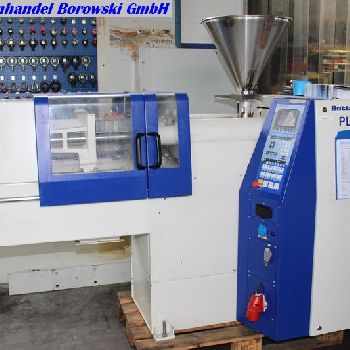

Used Battenfeld Plus 350-75 Unilog B2 Injection moulding machine
$ 14,385
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Injection Molding Machines |
| Manufacturer: | Battenfeld |
| Model: | Plus 350-75 Unilog B2 |
| Year of Make: | 2007 |
| Description: | technical data: Clamping unit |type of drive: fully hydraulically |clamping type: fully hydraulic |method of construction: two tie bars |clamping force: 350 kN |distance between tie bars h: 270 mm |size of mould plates h: 470 mm |size of mould plates v: 280 mm |min. mould height: 150 mm |max. mould height: 250 mm |max. open daylight: 450 mm |opening stroke: 200 mm |ejector stroke: 100 mm |ejector force: 26 kN |centring device diameter of moving platen: 110 mm |centring device diameter of fixed platen: 110 mm|technical data:injection unit |screw diameter: 25 mm |swept volume: 49 ccm |injection pressure: 1575 bar |screw length: 15 l/d |screw stroke: 100 mm |screw rotation: 420 min |screw torque: 200 N |plasticising rate: 12 g/s PS |injection rate into the open: 74 g/s PS |number of heating zones: 3 |nozzle contact force: 28 kN |nozzle stroke: 150 mm|measure & weight |measures of machine lxbxh: 2.24m x 0.9m x 1.68m |total weight: 1000KG |equipment includ |
| Technical Specifications: | Clamping force: 35 T Screw diameter: 25.0 mm Tie bar spacing (H): 270.0 mm Shot volume: 49.0 cm³ Pressure on material: 1575 bar Opening of the press: 200.0 mm Length x width x height: 2240.0 mm × 900.0 mm × 1680.0 mm Weight: 1000.0 kg State: good At local norms: yes Status: visible |
