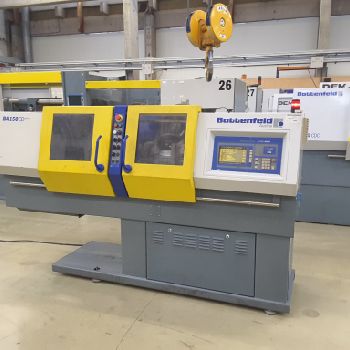

Battenfeld BA 150 / 050 CD Plus
$ 3,983
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Injection Molding Machines |
| Manufacturer: | Battenfeld |
| Model: | BA 150 / 050 CD Plus |
| Year of Make: | 1991 |
| Description: | Manufacturer: Battenfeld |Type of machine: BA 150 / 050 Plus |Year: 1991 |Delivery time: Immediately |Terms of Delivery: Ex Works |Controlversion: Unilog 4000 |Screen text: Dutch |Operating Hours Hrs. |Price: on request |Technical details |Clamping unit |Clamping force: 150 kN |Size of mould platens (h x v): 330 mm x 300 mm |Distance between tie bars (h x v): 185 x 155 mm |Mould opening stroke: 220 mm |Mould height min.: 184 mm |Mould height max.: mm |Max daylight: 404 mm |Hydraulic ejector - stroke: 70 mm |Ejector force forward/backward: 17,5 kN |Injection unit |Screw diameter: 22 mm |Ls/D ratio: 16 |Injection pressure: 1488 bar |Stroke volume: 33,4 ccm |Shot weight, PS: 30,4 g |Injection stroke: 88 mm |Screw speed: 410 1/min |Plasticising rate max.: 9,5 g/s |Nozzle pressure: 32,5 kN |Electric and Hydraulic Equipment |Installed heating capacity: 3,6 kW |Adjustable barrel heating zones: 1+3 |Pump power 5,5 Kw |Oil 100 L |Dimensions und weights |Total |
| Technical Specifications: | Clamping force: 15 T Screw diameter: 22.0 mm Tie bar spacing (H): 185.0 mm Tie bar spacing (V): 155.0 mm Shot volume: 33.4 cm³ Shot weight: 30.4 g Pressure on material: 1488 bar Platen lenght: 330.0 mm Platen width: 300.0 mm Opening of the press: 220.0 mm Length x width x height: 2600.0 mm × 1200.0 mm × 1700.0 mm Weight: 1200.0 kg State: good At local norms: yes Status: visible |
