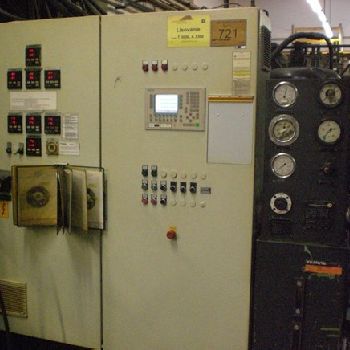

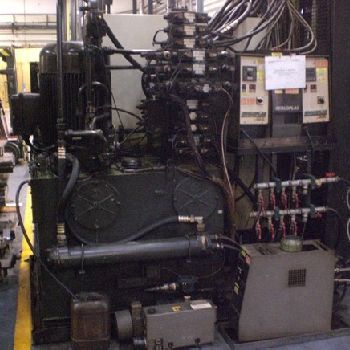

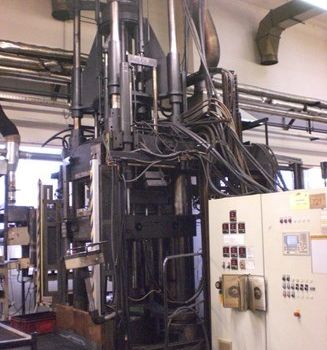

Dieffenbacher 630T Injection moulding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Injection Molding Machines |
| Manufacturer: | Dieffenbacher |
| Model: | 630T |
| Year of Make: | 1983 |
| Description: | Manufactured by: Dieffenbacher |Year of manufacture: 1983 |Size of plates: 800 x 1,000 x 65 mm |Closing force: 720 Ton |Stroke: Max 600 mm |Form opening force: 280 kN |Quick closing force: 160 kN |Pressure in hydraulic cylinder: Max. 320 bar |Working pressure: 280 bar |Max injection pressure: 2,100 kN |Max. Injection volume: 6.3 liters |Speed of injection: 1 - 315 cm3/s |Initial injection pressure: 1,700 kg/cm2 |Floor plane: cca14 m2 |Weight: cca 25 tons |
| Technical Specifications: | Clamping force: 720 T Screw diameter: 65.0 mm Pressure on material: 320 bar Platen lenght: 800.0 mm Platen width: 1000.0 mm Opening of the press: 600.0 mm Length x width x height: - × - × - Weight: 25000.0 kg Worked hours: 0 hours Hours under power: 0 hours State: good At local norms: yes Status: visible |
