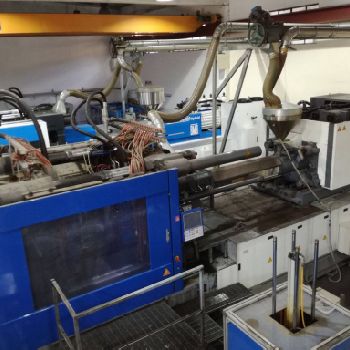

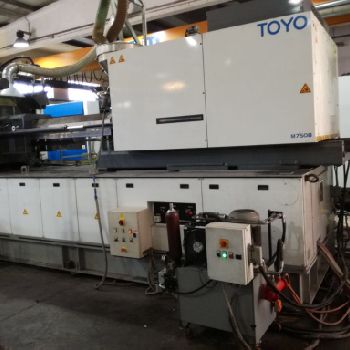

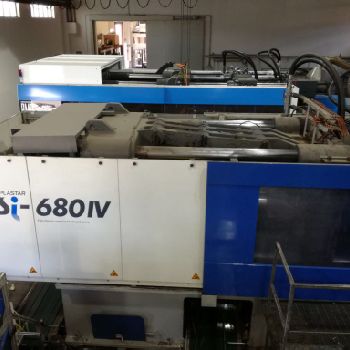

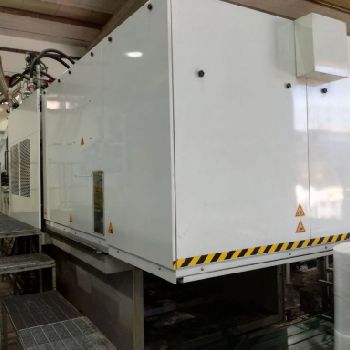

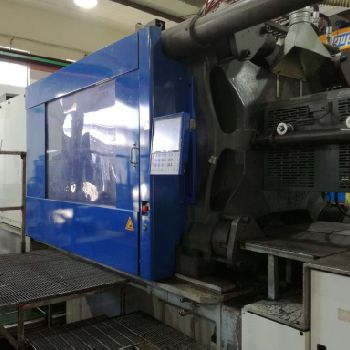

Toyo SI 680 IV Injection moulding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Injection Molding Machines |
| Manufacturer: | Toyo |
| Model: | SI 680 IV |
| Year of Make: | 2009 |
| Description: | Toyo 680 Ton. Injection Molding |Type SI 680 IV |Construction year 2009 |DbB 1145X1145 mm. |Screw diameter 110 |Moving plane stroke 900 |Calculated injection volume 4752 |Min / max mould thickness 450-1000 |3 Jacks |Cylinder and screw in wear-resistant material |N.1 hydraulic control unit for the control of 3 radials |Raised basement |Extraction increased to 280 mm |Hydraulic nozzle controlled by the control unit |Special drilling for 350350 and 470370 cassettes |1 fixed flat centering ring |Machine certified for good conditions |Can be seen running previous appointment |
| Technical Specifications: | Clamping force: 680 T Screw diameter: 110.0 mm Tie bar spacing (H): 1145.0 mm Tie bar spacing (V): 1145.0 mm Shot volume: 4752.0 cm³ Mould size: 450 - 1000 Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: visible |
