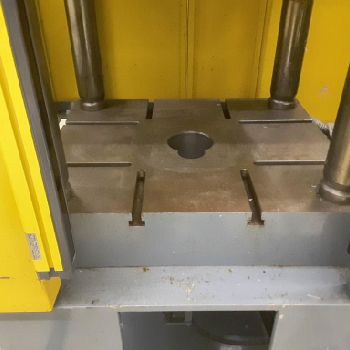

Used Battenfeld BP - H 1000 Injection moulding machine
$ 7,380
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Injection Molding Machines |
| Manufacturer: | Battenfeld |
| Model: | BP - H 1000 |
| Year of Make: | 1994 |
| Description: | Manufacturer: Battenfeld |Type of machine: BP - H 1000 |Year: 1994 |Delivery time: Immediately |Terms of Delivery: Ex Works|Controlversion: Unilog 4000 B |Screen text: German |Operating hours: 711 hrs|Technical details |Clamping unit |Clamping force: 1.000 kN |Size of mould platens (h x v): 600 mm x 500 mm |Distance between tie bars (h x v): 500 mm x 400 mm |Mould opening stroke: 300 mm |Mould height min.: 305 mm |Mould height max.: 450 mm |Max daylight: 870 mm |Hydraulic ejector - stroke: 150 mm |Ejector force forward/backward: 30 kN |Electric and Hydraulic Equipment |Nominal capacity of pump motor: 11 kW |Installed heating capacity: 2 x 3,5 Kw |Adjustable heating zones: 2 |Reservoir capacity: 240 ltr. |Dimensions und weights |Dimensions of the machine ca.: 2,4 m x 1,3 m x 2,7 m |Total machine weight: 4200 kg |Accessories |- Anti vibration |
| Technical Specifications: | Clamping force: 10 T Length x width x height: 2400.0 mm × 1300.0 mm × 2700.0 mm Weight: 4200.0 kg State: good At local norms: yes Status: visible |
