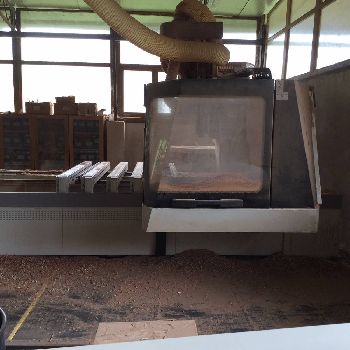

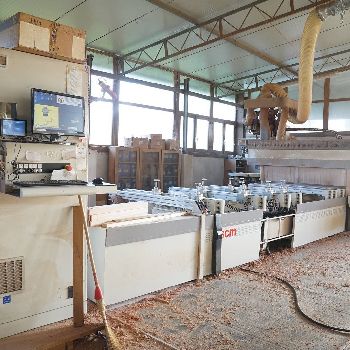

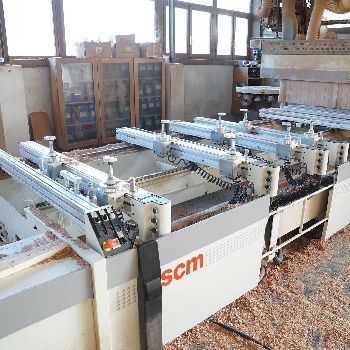

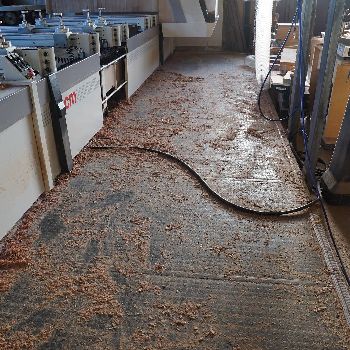

SCM Record 210 NT TVN Wood CNC machining centre
$ 48,972
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | CNC Working Center |
| Manufacturer: | Record |
| Model: | Record 210 NT TVN |
| Year of Make: | 2009 |
| Description: | CNC SCM RECORD 210 NT TVN 4 AXES |Technical characteristics: |-Year of registration.-2.009. |-Working field in X .- 4.310, mm. |-Working field in Y .- 1.550, mm. |-Working field in "Z .- 305, mm. |- Vertical milling group with C axis. |-4 axis 360 rotation of the milling machine. |-Power of the vertical milling machine.-12 kw. |-Space of changing tools.-36. |-System of change of tools.-HSK-F-63. |- Horizontal milling group, bilateral. |-Power of the horizontal milling mill. -5,5 Cv |-Table of the machine.-Console table. |-Special system for windows. (Uniclan special tweezers) |-Software.-MICROSOFT WINDOWS XP PROFESSIONAL. |-XILOG PLUS-SCM ROUTOLINK. |-Hand terminal. |-Help laser configuration. |-SCM RAPID 24. |-SCM UNIVERSAL K2. |-SCM POWER 2000. |-Rolutions per minute.-18,000. |-Number of transverse 8. |-Positioning help. |- Vacuum pump with a capacity of 250, m3 / h. |-Security device.-Safety mats. |-Bands for chip transport. |-Necessary space for your ins |
| Technical Specifications: | X stroke: 4310.0 mm Y stroke: 1150.0 mm Z stroke: 305.0 mm Axis nbr: 4.0 Tool changer positions: 36.0 Vacuum pump: 250 m³/h CNC type: MICROSOFT WINDOWS XP PROFESIONAL. -XILOG PLUS-SCM ROUTO Length x width x height: - × - × - Weight: 5000.0 kg State: good At local norms: yes Status: visible |
