Glass lined reactor De Dietrich BE 4000
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Chemical / Pharmaceutical Accessories |
| Manufacturer: | DE |
| Model: | BE 4000 |

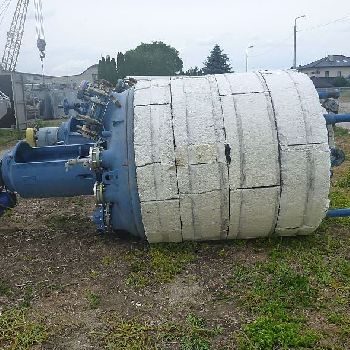

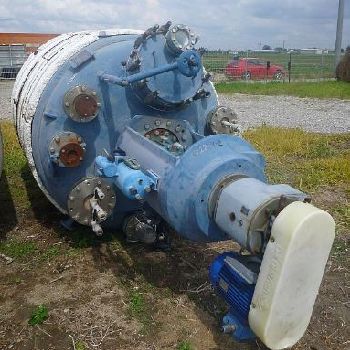

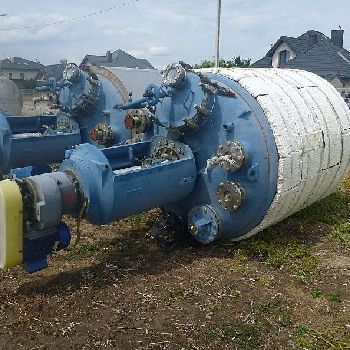

| Description: | Used glass lined reactor De Dietrich BE 4000 with total volume 5335 l and working volume 4000 l. |Internal is rated for work on pressure range from -1 up to 6 bar at temperature range from -25C to 200C. |Heating jacket has volume 600 l and is designed for work on pressure -1/6 bar and temperature -25/200C. |Reactor has top mounted turbine type glass lined agitator driven through gearbox by el motor 7.5 kW, 1450 rpm, 230/400 V, 50 hz. |Working rotation of agitator up to 97 rpm. |Reactor has central bottom discharge outlet. |Mounted on 4 carbon steel legs. |Technical documentation included. |
| Technical Specifications: | Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
