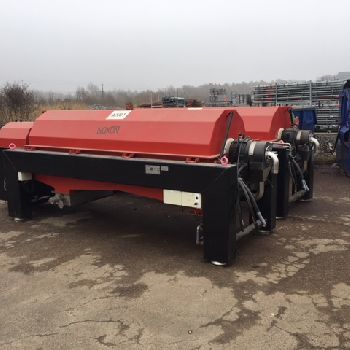

Noxon DC 40 FC Decanter
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Sweden |
| Category: | Centrifuges |
| Manufacturer: | FC |
| Model: | DC 40 FC |
| Year of Make: | 2012 |
| Description: | Cabinet with operator panel (SP4000) are brand new. |Decanter was built in 2012 barely used. At the beginning of 2019 will be refurbished. |Delivery time approx. 10 weeks. |Hydraulic capacity: 40m3/h |Dry solid load capacity: 1400kg/h |Sold with full warranty|Dewatering principle : Counter- current, 2-phase |Volume capacity. The rating varies owing to the sludge type : 25-50m3/h |Max dry solid/hour : 1600 kg |Drum diameter 800 mm |Rotor length 2446 mm |Cylindrical rotor lenght 1180 mm |Max. Clarification area 3.26 m2 |Max. Hydraulic volume 615 lit. |Max g-force 2162 m/s2 |Max rotation 2200 rpm |Sigma factor 7052 m3/s2 |Sound level (distance 1 m open air) 80 dB(A) |Starting time 0-1900 rpm 240 sek |Rinsing water ~2000 1 / stop, pressure: 3 bar |Length 4740 mm |Max breadth 1440 mm |Height 1624 mm |Distance between legs, outside 3660 mm |Lowest lifting hook height 2.5 m|DRIVING MOTOR DRUM|Manufacturer ABB |Type M2AA 250 M |Effect 55 kW |Rotation speed 1475 rpm |N |
| Technical Specifications: | Length x width x height: - × - × - Weight: - State: like new At local norms: --------- Status: visible |
