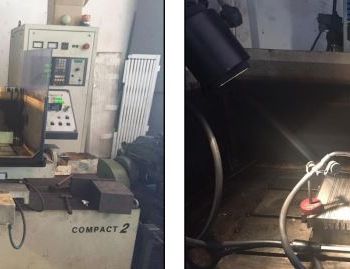

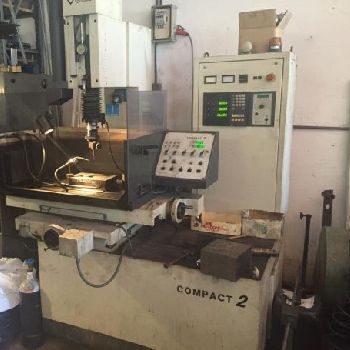

Ona Compact 2 Die sinking edm machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Die-Sinking EDM Machines |
| Manufacturer: | ONA |
| Model: | Compact 2 |
| Year of Make: | 1997 |

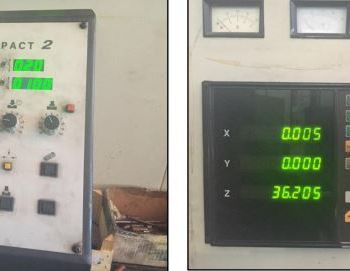

| Description: | Electro-erosion |Manufacturer: ONA |Model: Compact 2 |FAGOR viewer |Year of manufacture: 1997 |Travel of the axes (X, Y, Z): 300 x 200 x 200 mm |Dimensions of the tank: 800 x 500 x 320 mm |Dimensions of the table: 550 x 350 mm |Maximum distance between head and table: 520 mm |Permissible weight on the table: 200 Kg |Weight of the electrode: 30 Kg |Maximum power required: 3.5 Kva|Generator |Maximum intensity: 45 A. |Pulse voltage: 50/100/200 |Pulse regulation: between 1 and 1999 micro-seconds |Pause regulation: between 1 and 999 micro-seconds |Maximum starting capacity with copper: 350 mm / min |Maximum starting capacity with graphic: 375 mm / min |Volumetric wear of the copper electrode: 0.2% |Volumetric wear of the graphite electrode: 0.1% |Maximum surface finish: 0.4 microns Ra (CLA)|Filtering unit |Number of filter cartridges: 2 |Filtering quality: 5 microns |Total capacity: 300 Lt. |Hours of work: 4800 |
| Technical Specifications: | X Axis: 300.0 mm Y Axis: 200.0 mm Z Axis: 200.0 mm Worktank length: 800.0 mm Worktank width: 500.0 mm Worktank height: 320.0 mm Table length: 550.0 mm Table width: 350.0 mm Max. workpiece weight: 200.0 kg Max. machining current: 45 A Length x width x height: - × - × - Weight: - Worked hours: 4800 hours State: good At local norms: --------- |
