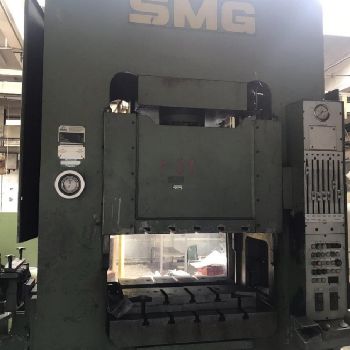

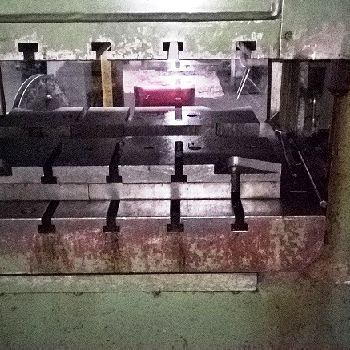

SMG DS 200-1000/830 metal press
$ 39,340
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Hydraulic Presses |
| Manufacturer: | SMG |
| Model: | DS 200-1000/830 |
| Year of Make: | 1979 |

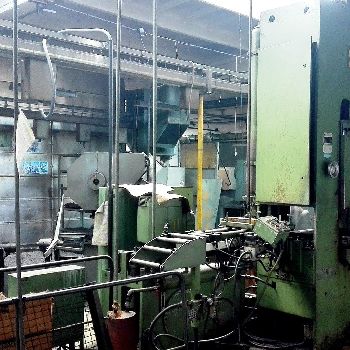

| Description: | Offer: Production line of SMG -DS hydraulic press. 200 - 100/830 with additional equipment: belt unwinder, straightener, |battery and automatic feeder.|SMG-DS200 -1000/830: |Automatic hydraulic press designed for production in series production of pressed and punched parts made of steel, brass, bronze and other tapes. The machine is a high-speed circular press that is particularly suitable for short-stroke jobs such as punching, stamping, deburring and flat elements. The press can reach high cycle times by controlling the photocell, even when manually feeding. No special foundations are required for the device. The machine is placed on the transport frame.|Technical data: |Year of production: 1979 |Drive power: 37 kW |Operating voltage: 380 V |Control voltage: 220 V |Frequency: 50 Hz |Nominal power: 2000 kN |Max. adjustment: 200 mm |Installation height: 500 mm |Table and plate (width x |depth): 1000 x 830 mm |Table height: 950 mm |Dimensions: 7700 x 3500 mm |Machine heig |
| Technical Specifications: | Power in tons: 200 T Table length: 950.0 mm Table width: 1000.0 mm Type: Hydraulic Ram stroke: 200.0 mm Motor power: 37.0 kW Length x width x height: 7700.0 mm × 3500.0 mm × 3570.0 mm Weight: - State: good At local norms: --------- Status: visible |
