Edelhoff HZP 160 Hydraulic Double-Column Press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Hydraulic Presses |
| Manufacturer: | Edelhoff |
| Model: | HZP 160 |
| Year of Make: | 1997 |

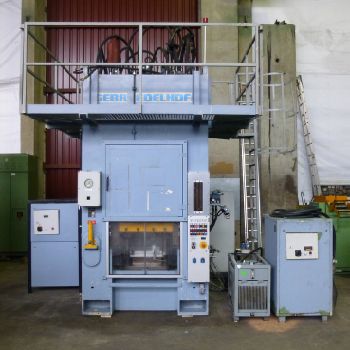

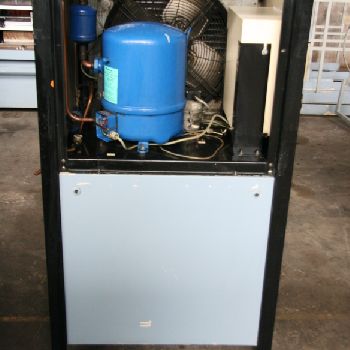

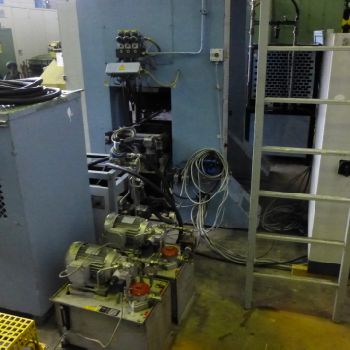

| Description: | The machine isn’t erected and installed yet. |The pictures are from the origin location of the former owner.|further details: |- sideway passage W: 520 x H: 620mm |- passage front side W:660mm x H: 600mm|equipment: |- walkable platform arround the machine= height over floor approx. 2400mm, platform approx. 2700 x 2600 x 1050mm |- hydraulic pack |- oil cooler|technical details: |- pressure: 160 t |- distance between columns: 1000 mm |- stroke: 250 mm |- dayligth: 600 mm |- distance table/ram: 600 mm |- table height over floor: 550 mm |- table surface area: 810 x 860 mm |- clamping surface ram with T-Nuts: D x W: 720 x 580 mm |- total power requirement: 15 kW |
| Technical Specifications: | Power in tons: 160 T Table length: 810.0 mm Table width: 860.0 mm Type: Hydraulic Ram stroke: 250.0 mm Distance between columns: 1000.0 mm Motor power: 15.0 kW Length x width x height: - × - × - Weight: 16000.0 kg State: good At local norms: --------- Status: visible |
