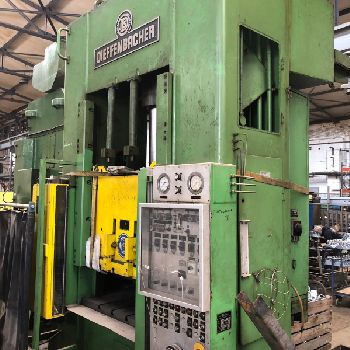

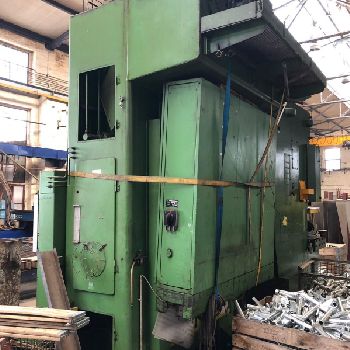

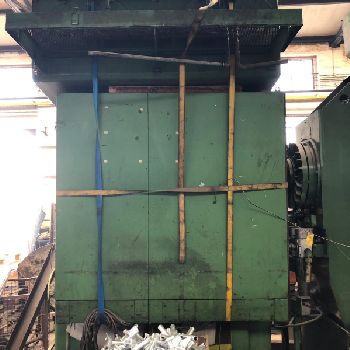

Dieffenbacher DT II 100/40 metal press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Hydraulic Presses |
| Manufacturer: | Dieffenbacher |
| Model: | DT II 100/40 |
| Year of Make: | 1982 |
| Description: | DIEFFENBACHER DT II 100/40 hydraulic press manufactured in 1982. It is a deep drawing press, which is characterized by forming the sheet in such a way that its blank is drawn into the forming die radially by the mechanical action of the punch. It allows you to transform the shape while maintaining the material. |Technical data of a 100 ton deep drawing press: |- Table dimensions: 1000 x 800 mm |- Slider dimensions: 1000 x 800 mm |- Main cylinder: 100 tons |- Stroke of the main cylinder: 600 mm |- Stroke of the deep drawing unit: 250 mm |- Unit pressure deep drawing: 40 tons |- maximum building height: 900 mm |- working pressure: 265 bar |- cylinder: O200 / 220 mm |- distance between columns: 1100 mm |- power: 42 kW |- dimensions of the machine: 1.50 x 2.40 x 5.30 m |- weight of the two-column press: approx. 12100 kg |- safety system |Gate press 100 t DIEFFENBACHER DT II 100/40 is generally applicable. It is suitable for machining various metals, including tho |
| Technical Specifications: | Power in tons: 100 T Table length: 1000.0 mm Table width: 800.0 mm Nbr of strokes/min: 600.0 Distance between columns: 1100.0 mm Motor power: 42.0 kW Length x width x height: 1500.0 mm × 2400.0 mm × 5300.0 mm Weight: 12100.0 kg State: good At local norms: --------- |
