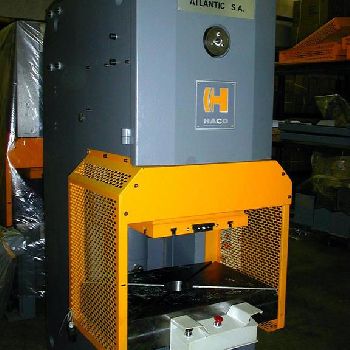

BRET PCR63 metal press
$ 25,874
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Hydraulic Presses |
| Manufacturer: | Bliss Bret |
| Model: | PCR63 |
| Description: | TECHNICAL CHARACTERISTICS: |built |frame is made of mechanically welded steel, made of thick sheets |Type Gooseneck |frame designed with mechanical embedding of the main plates, to avoid shearing the welds |Main engine |DC-type main motor installed at the back of the press |Clutch |clutch - brand brake ORTHLINGHAUS, with dry discs with low and electro - pneumatic control, couples the control shaft to the steering wheel (clutch function) or to the frame of the press (braking function). |The brake clutch operates at high speed and is controlled by a double safety solenoid valve. (pneumatic) |slide |The slider is made of steel - thick sheets. |The slider is controlled by small end in oil bath. It is guided in the frame by 6-point sliding rails without lubrication |There is a hydraulic safety in the slider |The pressure of the oil contained in the cushions acts directly on the overload valve which is kept closed by a pneumatic counter pressure |The adjustment of the slide is |
| Technical Specifications: | Power in tons: 63 T Table length: 800.0 mm Table width: 540.0 mm Type: Hydraulic Ram stroke: 120.0 mm Nbr of strokes/min: 100.0 Motor power: 7.5 kW Length x width x height: 1100.0 mm × 1550.0 mm × 2190.0 mm Weight: 4800.0 kg State: good At local norms: yes Status: visible |
