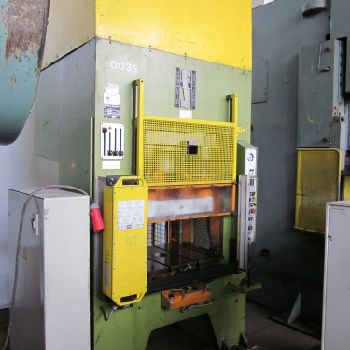

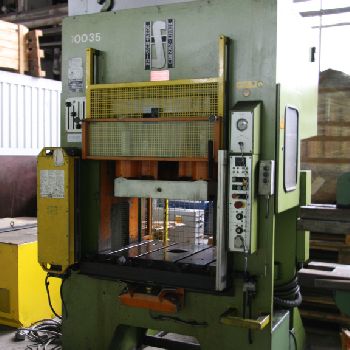

HANS SCHOEN UTE-B (UVV) Hydraulic Double-Column Press













REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Hydraulic Presses |
| Manufacturer: | Hans Schoen |
| Model: | UTE-B (UVV) |
| Year of Make: | 1976 |

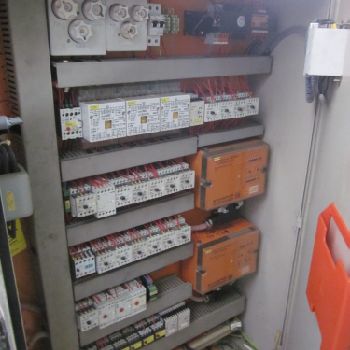

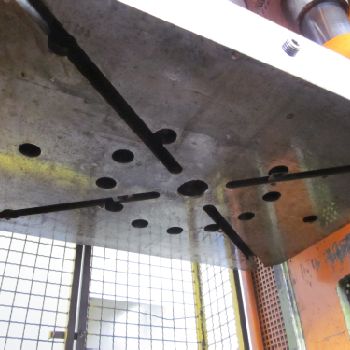

| Description: | incl. electric cabinet |Accident Prevention & Insurance according 11.064 19 has been installed |light curtain available |pressure hold approx. 3-5sec. |two hand operation |T-slots according DIN 650 from clamping plate runing paralllel below: |a=22mm; b=37mm; h=37mm; c=17mm; |T-slots according DIN 650 from the ram above centric running: |a=22mm; b=37mm; h=37mm; c=17mm;|Machine can be demonstrated under power.|Technical Details: |pressure: 160 t |distance between columns: 850 mm |stroke: 150 mm |workpiece height max.: 520 mm |table height over floor: 840 mm |table surface area: 820 x 650 mm |dayligth min/max: 360/510 mm |stroke adjustment: 0...150 mm |total power requirement: 22 kW |weight of the machine approx.: 5,5 t |space requirements of the machine approx.: L:1,6 x B:1,5 x H:3,1 m |
| Technical Specifications: | Power in tons: 160 T Table length: 820.0 mm Table width: 650.0 mm Type: Hydraulic Ram stroke: 150.0 mm Distance between columns: 850.0 mm Motor power: 22.0 kW Length x width x height: 1600.0 mm × 1500.0 mm × 3100.0 mm Weight: 5500.0 kg State: in working conditions At local norms: yes Status: under power |
